F-03BT-WP-UE
3.5 Inch full-range Outdoor Speaker
Compact speaker with clear and balanced sound reproduction, ideal for discreet installations in boutiques, restaurants, or conference rooms as well as smaller outdoor areas (e.g. terraces).
- Versatile 3.5-inch full-range surface-mount speaker system
- EN-54-24 certified• IP65 weather protection
- Perfect for music and announcements
- Sleek design for seamless integration with walls and ceilings

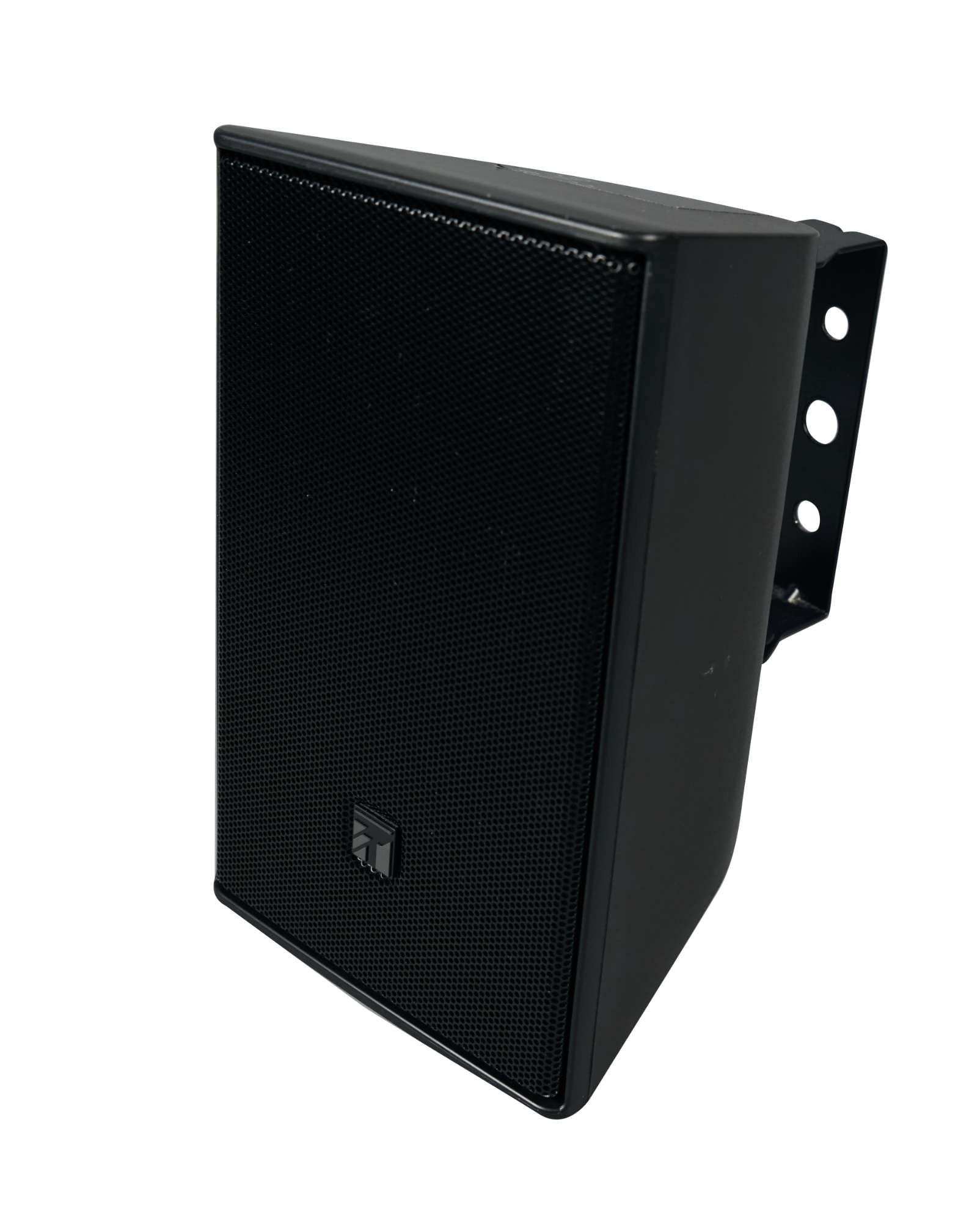

- Safe and easy installations with included mounting bracket
- Only available for the indoor models
- Flexible angle adjustment for wall, ceiling, and pole mounting
- Ideal for permanent installs or portable setups
- All models are available in black and white (BT = black, WT= white)
Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.
Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.
Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| F-03BT-WP-UE | |
|---|---|
| Frequency range |
100 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
86 dB |
| Rated input (100 V) |
15 W |
| Tappings (100 V) |
15/5/3/1 W |
| Rated input (low impedance) |
Rated noise power: 30 W (8 Ω) Continuous program 60 W (8 Ω) |
| Rated impedance (low impedance) |
8 Ω |
| Speaker component |
9 cm (3.5'') Full-range PPcone-type |
| Cord connector |
M4 screw terminal (distance between barriers: 9 mm) |
| Dimensions |
130 x 221 x 132 mm (W x H x D) |
| Finish |
Aluminium, black (RAL 9011 or equivalent) |
| Operating temperature |
−10 °C to +50 °C |
| Weight |
1.7 kg |
