ER-1206S
Megaphones

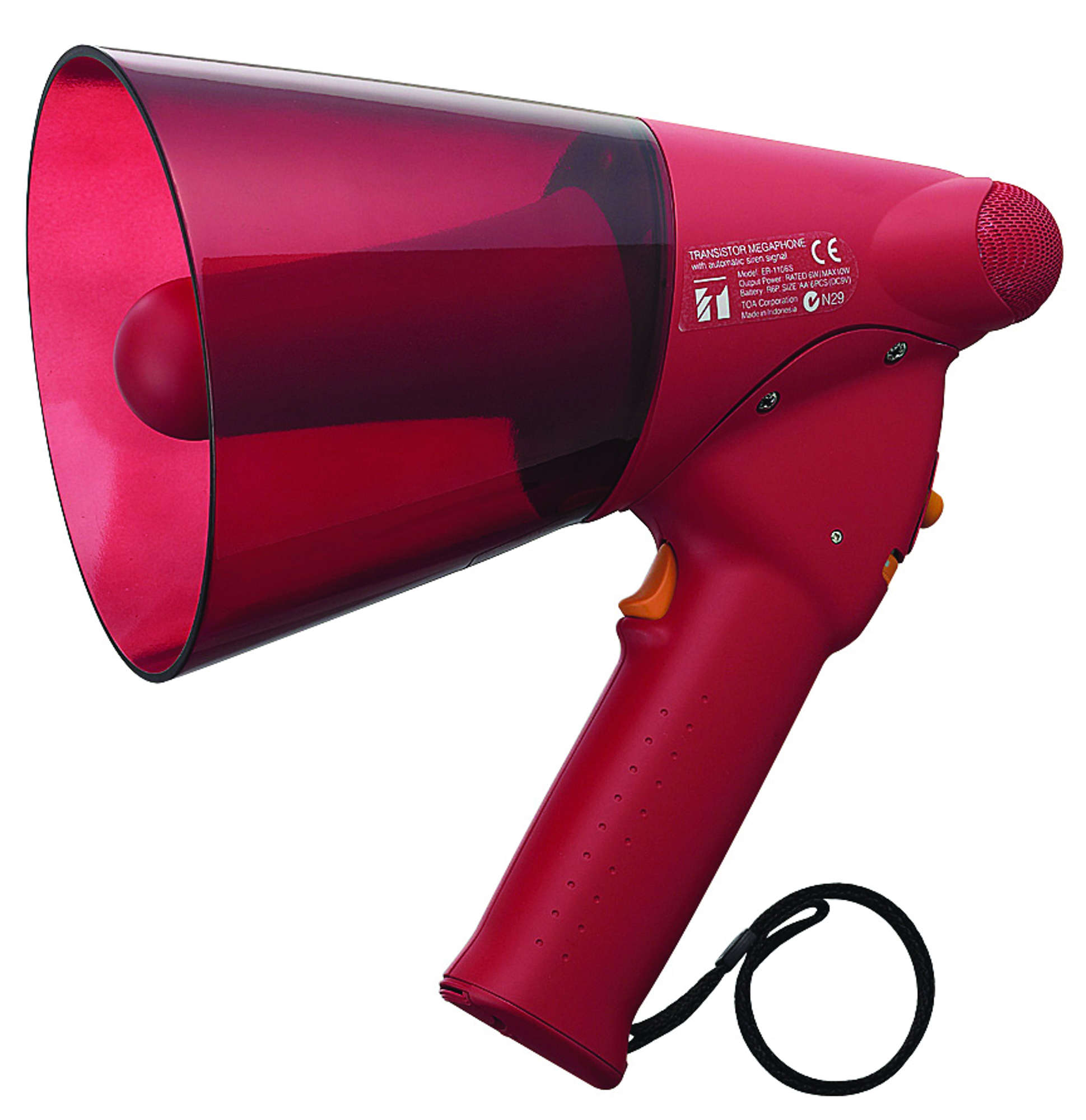

The ER-1206S is a compact splash-proof megaphone rated at 6 W output featuring a built-in siren. It features IPX5 water-jet-resistant designs. Pressing the siren switch sounds the siren, alerting the people to the emergency situation. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.
- Compact & lightweight
- Good sound quality due to wide frequency response
- Directional microphone with press-to-talk switch
- Neodymium magnet for high performance
- Battery saving operation
- Rugged enclosure
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| ER-1206S | ER-1206 | ER-1206W | |
|---|---|---|---|
| Power source |
R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC) |
R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC) |
R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC) |
| Frequency response |
450 Hz - 6 kHz |
450 Hz - 6 kHz |
450 Hz - 6 kHz |
| Rated output |
6 W (10 W max.) |
6 W (10 W max.) |
6 W (10 W max.) |
| Battery life |
8 h at 9 VDC, 5 h at 6 VDC |
8 h at 9 VDC, 5 h at 6 VDC |
8 h at 9 VDC, 5 h at 6 VDC |
| Battery life on signal |
20 min at 9 VDC, 10 min. at 6 VDC |
20 min at 9 VDC, 10 min. at 6 VDC |
20 min at 9 VDC, 10 min. at 6 VDC |
| Signals |
Siren |
Whistle |
|
| Audible range |
Voice 250 m |
Voice 250 m |
Voice 250 m |
| Dimensions |
154 x 266 x 250 mm (W x H x D) |
154 x 266 x 250 mm (W x H x D) |
154 x 266 x 250 mm (W x H x D) |
| Finish |
ASA resin, clear red, dark red |
ASA resin, dark grey |
ASA resin, clear dark grey, yellow |
| Operating temperature |
-10 °C to +40 °C |
-10 °C to +40 °C |
-10 °C to +40 °C |
| Weight |
660 g |
660 g |
660 g |
