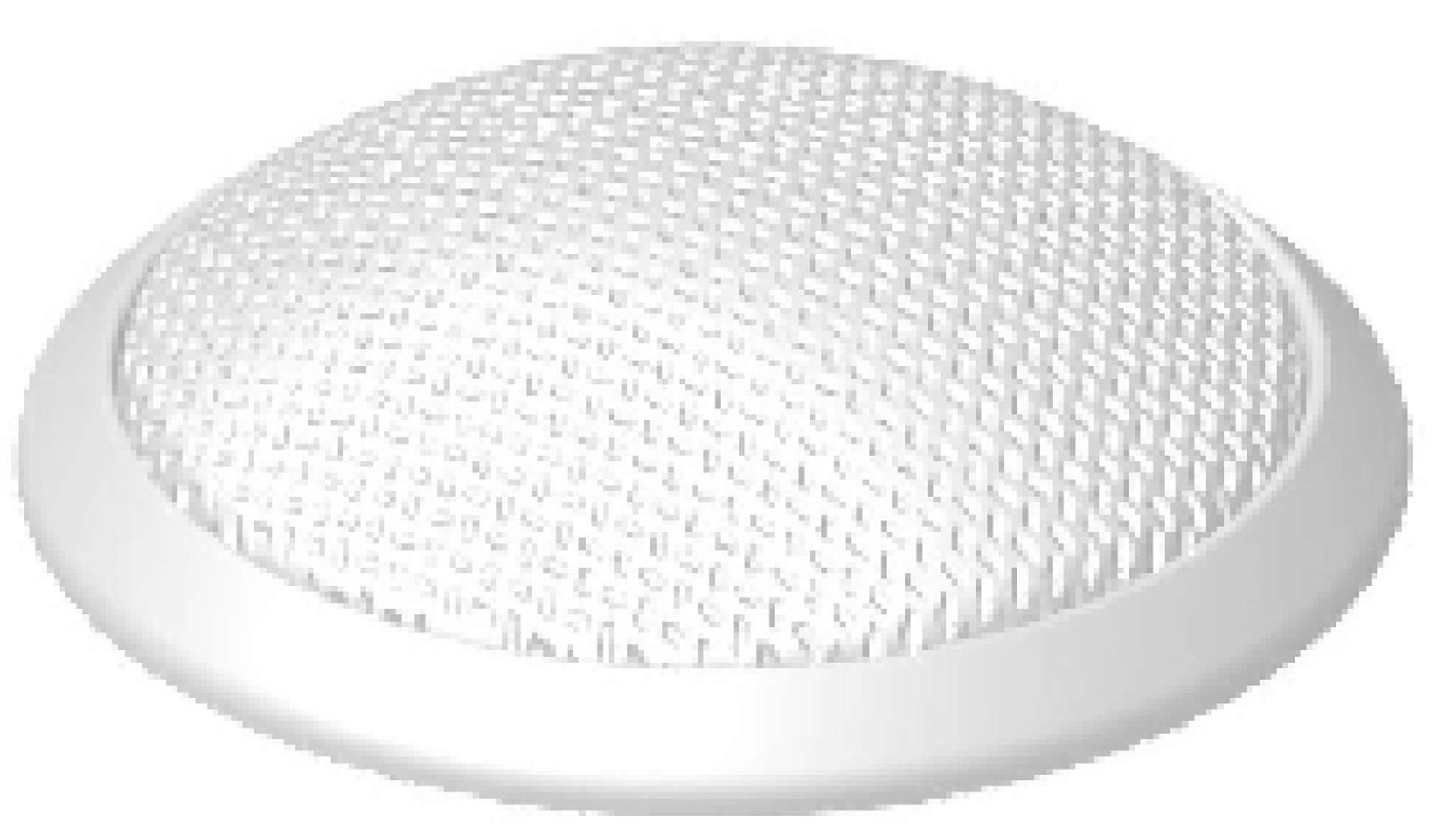

The EM-600 is an omnidirectional condenser microphone of only 28 mm (1.1") in diameter designed for sound pick-up application. It can be flush-mounted into a ceiling, wall, or desk, making it unobtrusive. It provides clear and high-quality sound.
30 Hz - 20 kHz
XLR-3-12 or equivalent
9 – 52 V DC
Flush-Mount Boundary Microphone
-36 dB (1 kHz 0 dB = 1 V/Pa)
0°C - +40°C
28 x 68 mm (Ø x D)
Steel, semi-gloss, paint, white
Rubber Isolation Ring × 2, M20 Nut × 1
The flush-mount boundary microphone shall be designed for sound pick-up applications, be 28 mm (1.1") in diameter, and have an omnidirectional electret condenser microphone element. It shall be unobtrusively mountable into a ceiling, wall or desk.
Frequency response shall be 30 Hz to 20k Hz. Rated impedance shall be 120 ohm, balanced, and rated sensitivity shall be –36 dB (1k Hz 0 dB=1 V/Pa). A 50 Hz low-cut filter shall reduce intrusive noise. The microphone shall be powered by any phantom power source supplying 9 – 52 volts. The output connector shall be XLR-3-12 equivalent. Operating temperature shall be 0° C to +40° C (32° F to 104° F). Body finish shall be steel, and head finish shall be zinc-plated steel wire, both with white semi-gloss paint. Dimensions shall be ø28 x 68 mm (ø1.1" x 2.68"), and weight shall be 85 g (0.19 lbs.). Two rubber isolation rings and an M20 nut shall be provided as accessories. The microphone shall provide clear and high-quality sound, and be well-suited for conference recording and security monitoring applications.
The flush-mounted boundary microphone shall be TOA model EM-600.
