D-921E
DISCONTINUED

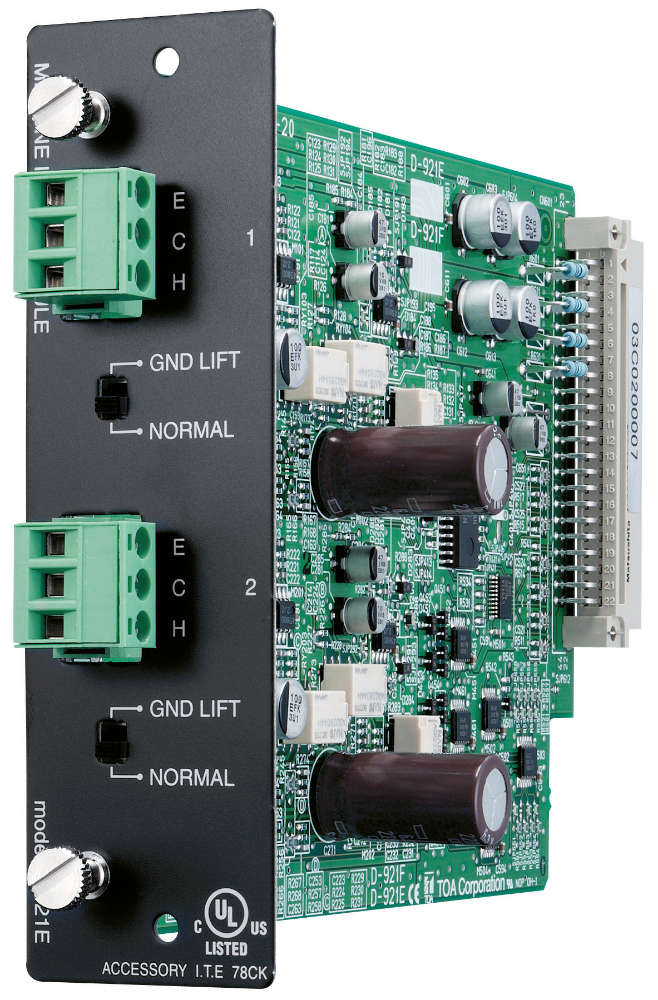

D-921E

Mic/Line Input Module (24 bits monaural type)

The D-921E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.

  • 2-channel microphone/line input module
  • Equipped with removable terminal block type connectors



Brochure
  • Specifications
  • Tender text
  • Downloads
Specifications
Specifications for product:
D-921E
Frequency response

20 Hz - 20 kHz
Inputs

2 channels, Mic/Line changeable ;
Mic: -50/-36 dBu, 4.7kOhm,
Line: -10/+4 dBu, 10kOhm, electronically-balanced
Connectors: removable terminal block (3 pins),
Phantom power supply (12-15V DC),
Ground lift switch
A/D, D/A Converter

24 bit
Sampling frequency

48 kHz
Dimensions

35 x 119.5 x 178.4 mm (W x H x D)
Finish

Steel plate, black
Weight

140 g
