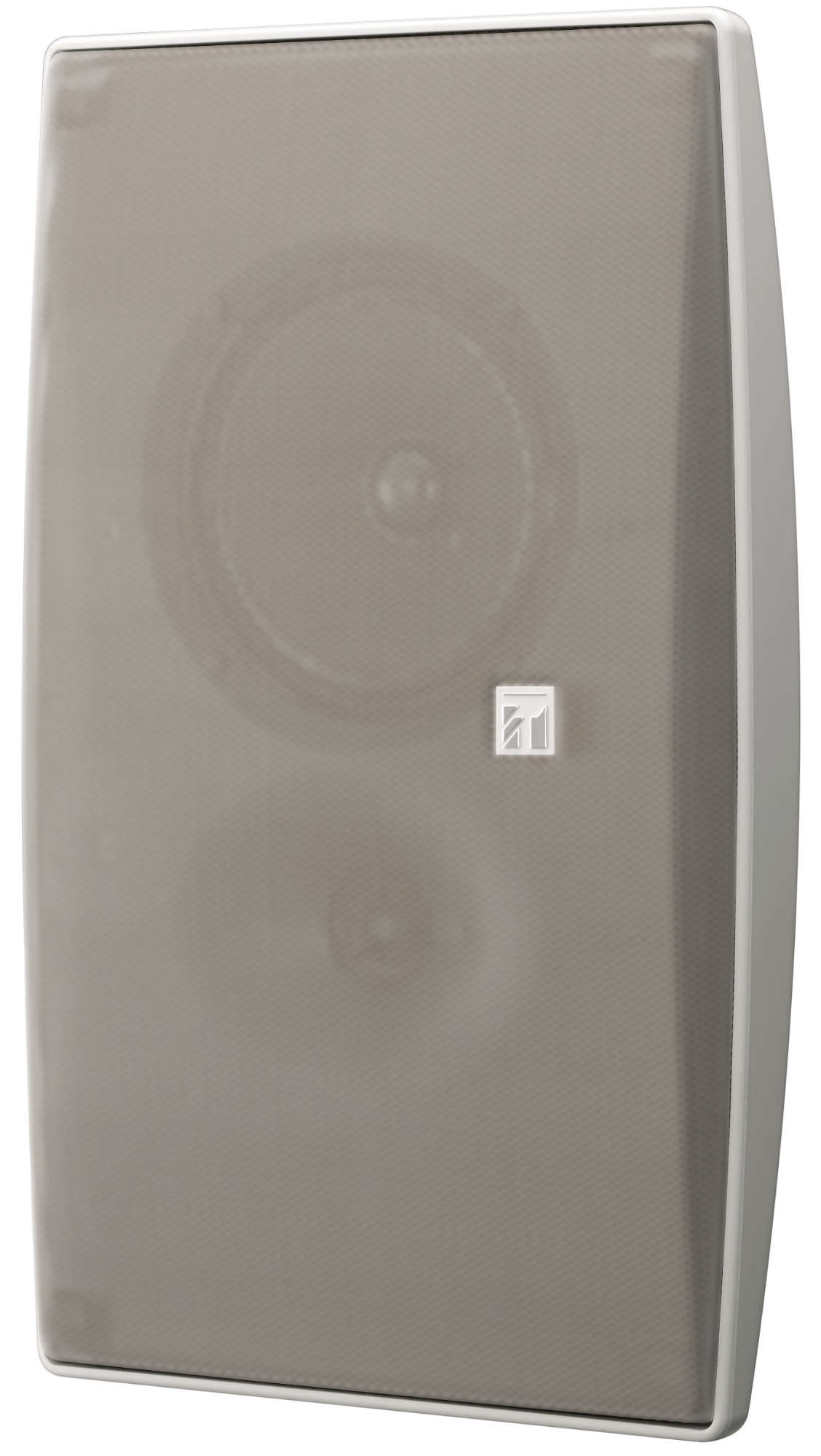

BS-1034
Wall Speakers
The BS-1034 is a wall mount speaker that can be installed easily on the wall with help of the plug-in speaker receptacle.
- 2-way speaker
- Easy and quick installation
- Attractive design based on the golden ratio
- Input impedance selector with rotary switch
- Fire resistant according to UL 94-V0
- Specifications
- Tender text
- Downloads
Specifications
Specifications for product:
| BS-1034 | BS-1034S | BS-634 | BS-634T | |
|---|---|---|---|---|
| Frequency response |
120 Hz - 20 kHz |
120 Hz - 20 kHz |
120 Hz - 18 kHz |
120 Hz - 18 kHz |
| Sensitivity (1 W, 1 m) |
90 dB SPL |
90 dB SPL |
90 dB SPL |
90 dB SPL |
| Rated input (100 V) |
10 W |
10 W |
6 W |
6 W |
| Tappings (100 V) |
100 V : 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3W) / 10kΩ (1 W) 70 V : 500 Ω (10 W) /1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W) / 10kΩ (0.5 W) |
100 V : 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3W) / 10kΩ (1 W) 70 V : 500 Ω (10 W) /1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W) / 10kΩ (0.5 W) |
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) |
100 V line: 1.7 kΩ (6 W), 70 V line: 1.7 kΩ (3 W) |
| Speaker component |
Low: 12 cm cone-type, High: Balanced dome-type |
Low: 12 cm cone-type, High: Balanced dome-type |
12 cm cone-type |
12 cm cone-type |
| Dimensions |
208 x 327 x 79 mm (W x H x D) |
210 x 330 x 80 mm (W x H x D) |
208 x 327 x 79 mm (W x H x D) |
208 x 327 x 79 mm (W x H x D) |
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, grey aluminium (RAL 9007 or eqquivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Weight |
1.4 kg |
1.4 kg |
1.3 kg |
1.3 kg |
