A-2000D

Energy efficient and eco-friendly due to digital technology.

Excellent sound quality
for background music and paging functions

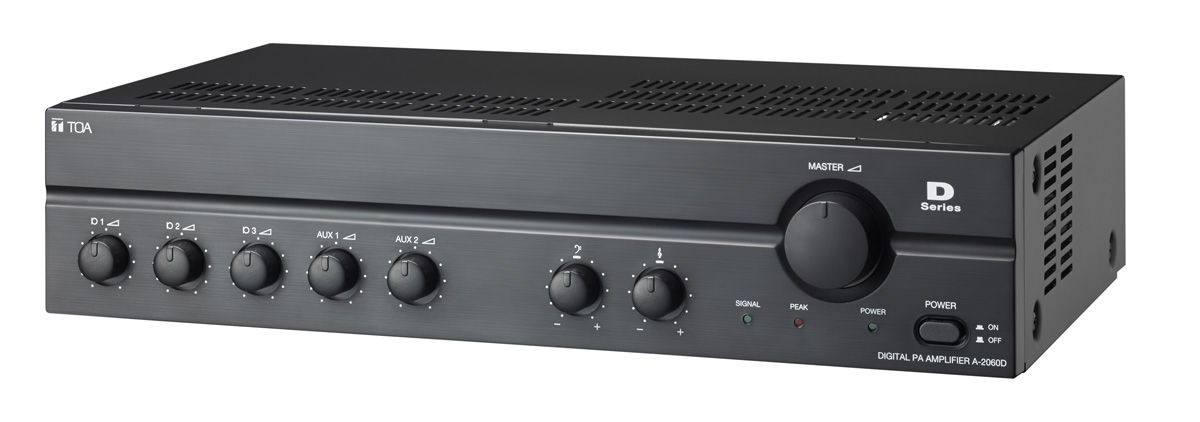

The A-2000D Series is a range of high performance mixer power amplifiers
at an optimal price/performance ratio.

The A-2000D Series is suited for broadcasting pagings or background music in schools, offices, shops, houses of worship and factories. Crystal clear announcements and high sound quality - the A-2000D is equipped with balanced microphone inputs for better isolation from external noise and provided with priority function on input #1, muting all other inputs when active.

ADVANTAGES

Energy efficient and eco-friendly due to digital technology

Cost savings at an optimal price/performance ratio : 80% power savings at highest performance and 70 % weight reduction saves transportation costs and thus reduces CO² emissions.

Crystal clear announcements and excellent sound experience

Background music in a high sound quality creates an excellent and relaxing atmosphere. The A-2000D Series combines this sound experience with clear and understandable paging for public address with priority function while keeping out external noise.

Choice of four power outputs from 30W to 240W

The A-2000D Series offers the right performance for every project. The amplifiers are available from 30 W to 240 W power output with a constant 100 V speaker output for each amplifier.

SOUND QUALITY – ENVIRONMENTALLY FRIENDLY

70

% less weight

80

% power savings

4

outputs from 30W to 240W to choose

FURTHER BENEFITS

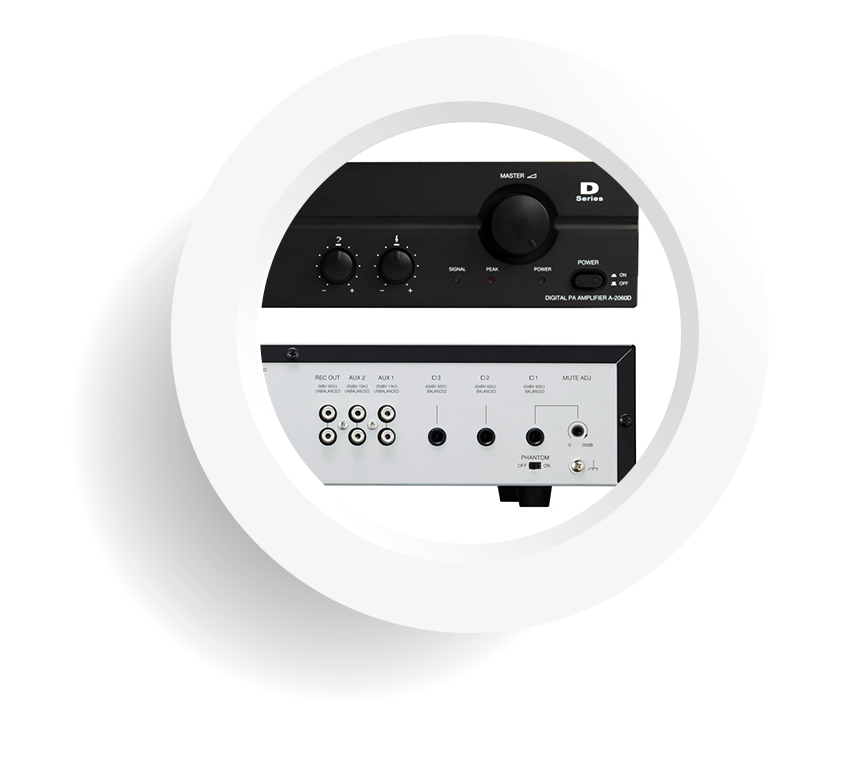

Microphone with priority function and phantom power

The priority function at input #1 is muting all other inputs when active. The trigger threshold can be adjusted to the priority function via a controller on the rear panel. Choose your MIC input version: 3 microphone inputs, 2 AUX input and 1 recording output.

Safe and easy to use

The A-2000D is finished with a scratch and fingerprint-resistant surface for easy handling as well as quick volume control with a master volume knob. A current limiter prevents damage due to current overload and the excess heat limiter protects the transistor and power transformer.

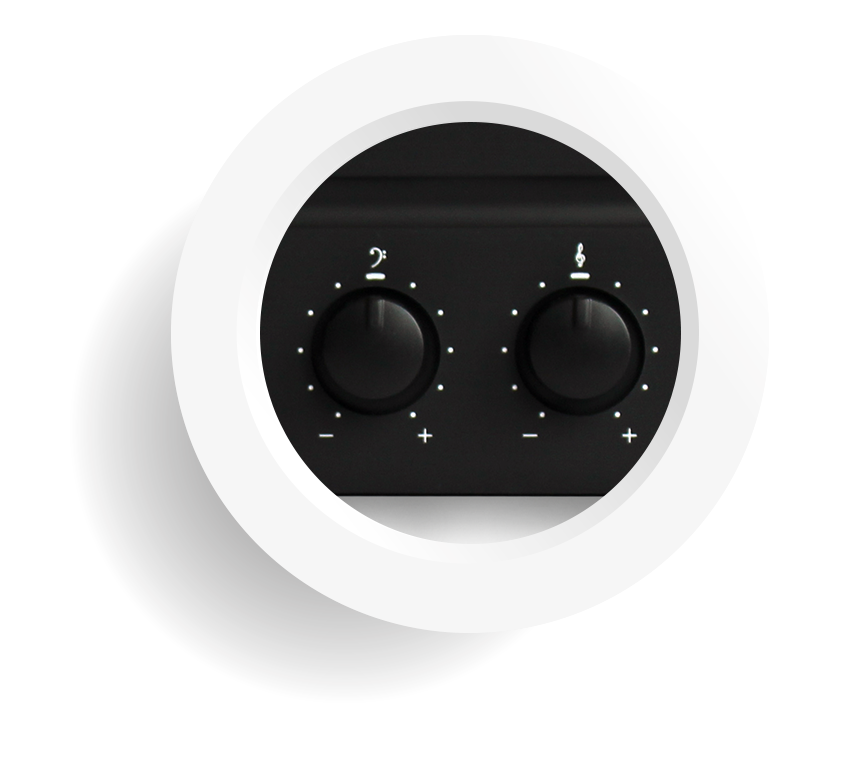

Tone control of boost and cut type

Independent tone control of boost and cut type for both high and low frequency. The amplifiers have also a volume control for each input plus a master volume control.

FAQ

Get your quotation for the A-2000D!

(* Please fill in this field)

A-2000D

Energy efficient and eco-friendly due to digital technology.


Models overview

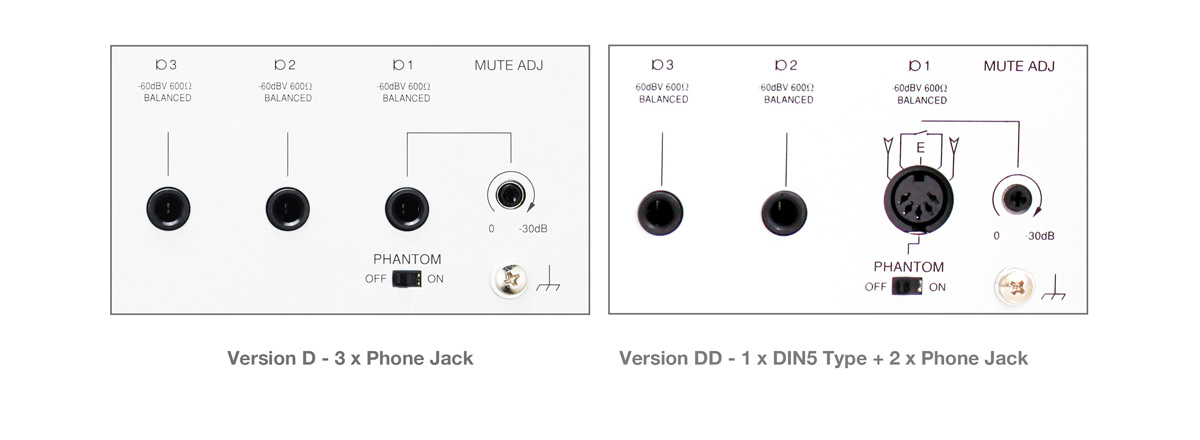

Choose your input connectors and rated output

Version D

Input connectors: 3 x Phone Jack

Model A-2030D A-2060D A-2120D A-2240D
Rated Output 30 W 60 W 120 W 240 W

Version DD

Input connectors: 1 x DIN5 Type + 2 x Phone Jack

Model A-2030DD A-2060DD A-2120DD A-2240DD
Rated Output 30 W 60 W 120 W 240 W

PLANNING SUPPORT

Planning a retail center?
Get in touch with us.

Together with our partners, we support you in the planning and project management of your property to find the best acoustic solution for your venue.

Talk to us. We are your expert for Safety and Sound.

Tel.: 040 25 17 19 17

Mail: contact ( at ) toa-eu.com

Further Details

Power source 220 240 V AC, 50 / 60 Hz
Rated Output 30 W, 60 W, 120 W, 240 W
Buttons Power switch, Volume control per input, Master Volume, Tone controls Bass and Treble
Power Consumption
(EN 60065) 		12-48 W
Inputs MIC 1 – 3: -60 dBV, 600 Ω, balanced AUX 1, 2: -20 dBV, 10 kΩ, unbalanced, RCA Pin Jack
Input Connectors 3 x Phone jack or 1x DIN5 Type + 2x Phone Jack
Outputs Speaker: 100 V, screw terminal / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion < 1% at 1 KHz, 1/3 rated power
S/N Ratio > 60 dB
Tone Controls Bass ±10 dB (100 Hz) / Treble ±10 dB (10KHz)
Finish Panel: ABS resin black / Case: steel plate, black
Dimensions (W x H x D) 420 x 100.6 x 280.3 mm
Finish Aluminium, Steel plate, ABS resin, 30% gloss, black
Weight 4.6 kg
