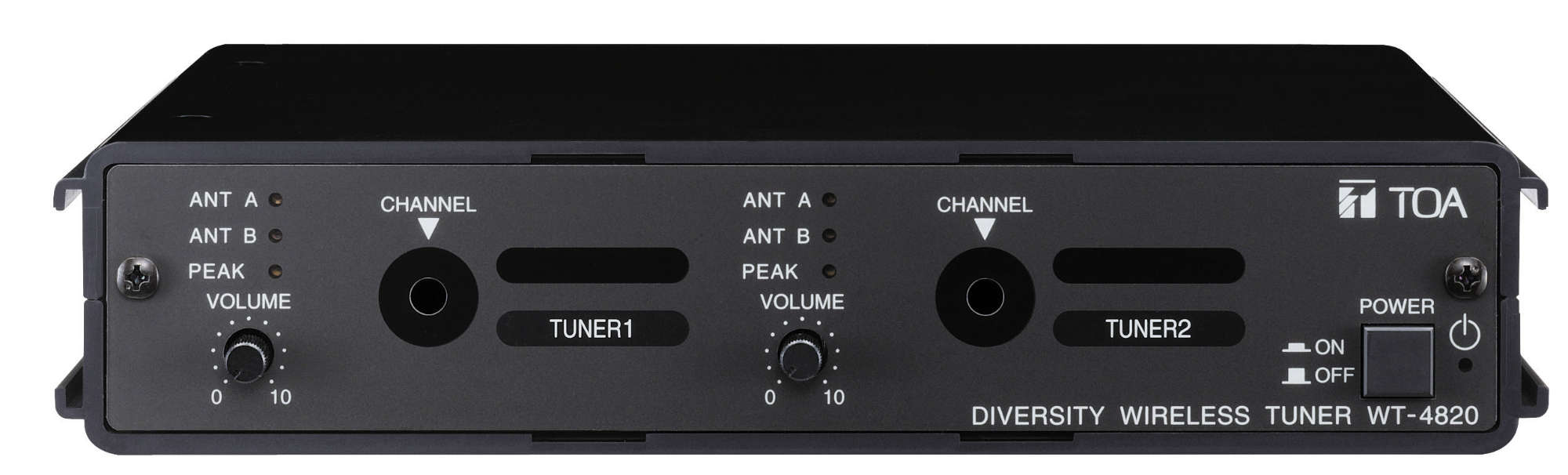

WT-4820
Dual Channel Receiver
The TOA WT-4820 diversity tuner can accept up to two optional wireless tuner modules of UHF band (WTU-4800). It can be mounted in a component rack using an optional mounting bracket (MB-WT3, MB-WT4).
- Dual channel diversity tuner working with the WTU-4800 tuner modules
- Mountable in a 19“ rack using the optional mounting brackets MB-WT4
- Other features: Noise squelch, phantom powering for antennae, mix/solo, switch, AF peak LED, antenna A/B-LED
- Technical data refers to the use in combination with 2 x WTU-4800 tuner modules
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| WT-4820 | |
|---|---|
| Power source |
AC mains (supplied AC adapter must be used) |
| Frequency range |
Depending on used tuner modules WTU-4800 |
| Receiving frequency |
depending on used tuner modules WTU-4800 |
| Diversity principle |
Space diversity |
| Antenna inputs |
2 x BNC (75 Ω) |
| Antenna outputs |
1 x BNC (75 Ω) |
| Frequency response |
50 Hz - 18 kHz |
| Audio output |
Mix/channel 1: XLR balanced, ¼“ jack unbalanced; channel 2: ¼“ jack |
| Dimensions |
210 x 44 x 181 mm (W x H x D) |
| Finish |
Resin, black |
| Operating temperature |
-10 °C to +50 °C (14 °F to 122°F) |
| Weight |
770 g |
