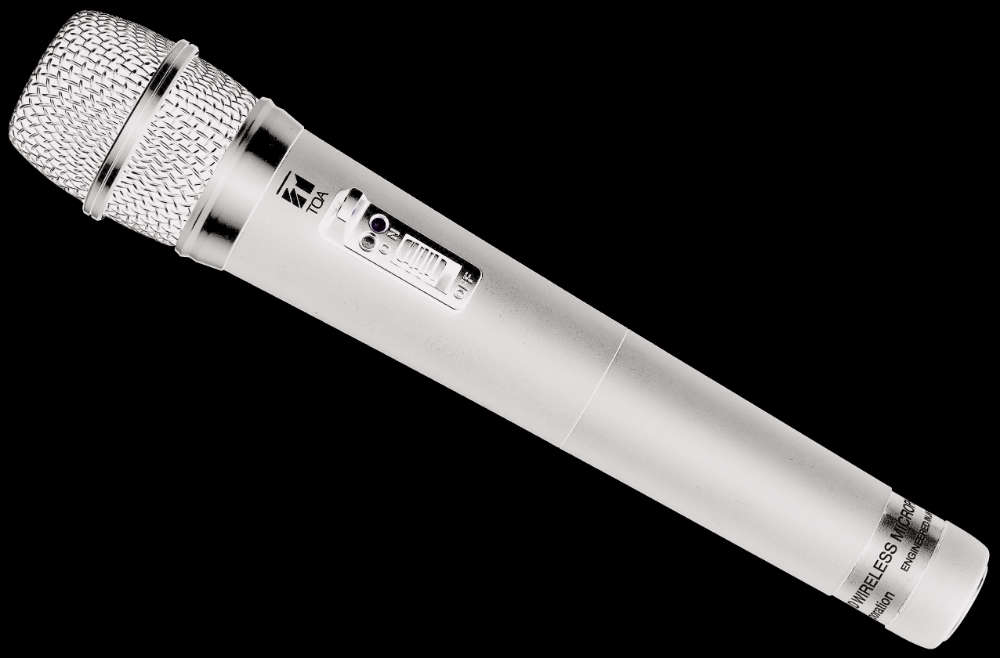

WM-5225 D01

Wireless microphone

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

  • Condenser microphone with high quality electret condenser capsule, high sensitivity and excellent sound quality
  • Slim, extremely lightweight and can be held comfortably and securely
  • Comes with an indispensable on/off switch, which at the same time acts as a rolling stopper
  • With a maximum SPL of 126 dBSPL it is the right choice for even the most energetic speaker




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
WM-5225 D01 WM-5265 D01 WM-5270 D01
Power source

Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2

Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2

Battery 1 AA size alkaline battery, 1.5 V

Frequency range

837 – 865 MHz

837 – 865 MHz

837 – 865 MHz

Selectable frequencies

64

64

64

Microphone type

Electret condenser

Dynamic

Dynamic

Directivity

Cardioid

Hypercardioid

Cardioid

Battery life

10 h

10 h

10 h

Simultaneous channels

7

4

7

AF response

100 Hz - 15 kHz

100 Hz - 15 kHz

80 Hz - 15 kHz

RF output power

10 mW

10 mW

10 mW

Max. input level

126 dBSPL

132 dBSPL

142 dBSPL

Dimensions

43.6 x 231.5 mm (Ø x D)

50 x 229 mm (Ø x D)

48 x 244 mm (Ø x D)

Finish

Resin, black

Resin, black

Metal, dark grey

Operating temperature

-10°C ... +50°C

-10°C ... +50°C

-10°C ... +50°C

Weight

180 g (with battery)

205 g (with battery)

340 g (with battery)
