DISCONTINUED

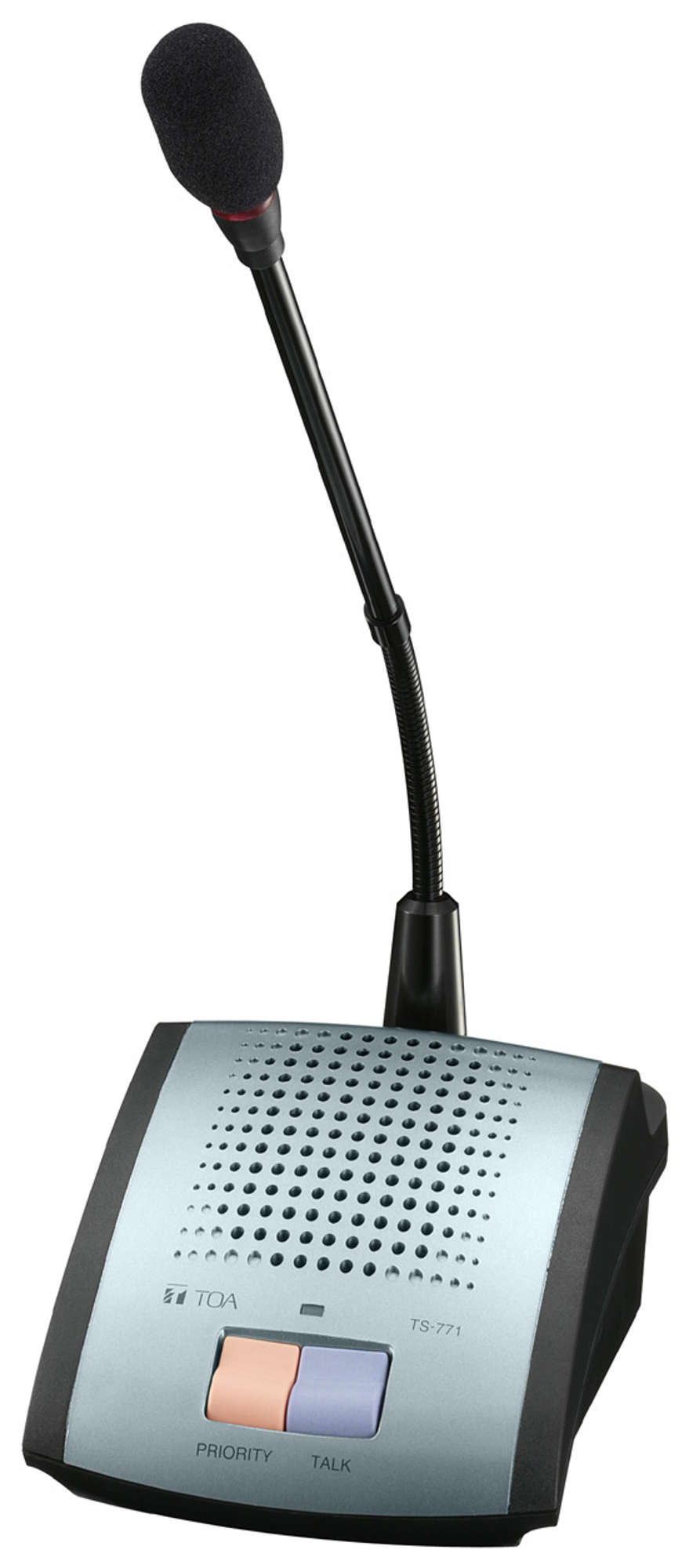

TS-771
Chairman's Unit
The TS-771 is a Chairman unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position allows a chairman to speak and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from delegate units (TS-772) to be monitored. By pressing the priority button, the chairman unit can take precedence over any delegate units. Two types of dedicated microphones are made available for the TS-771 as optional products: the TS-773 standard type and the TS-774 long type.
- Built-in speaker
- A ring-shaped LED on the optional microphone indicates that the microphone is on
- To prevent howling, the built-in speaker is turned off while the microphone is on
- Press-to-talk priority speech button activates chime and overrides Delegate’s Unit
- Press-to-talk button
- Recording output mini-jack for connection to a recording device
- Multiple chairman units operating simultaneously
- Long or short gooseneck microphone (optional)
- 8P quick-lock type mini-DIN socket
- Specifications
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| TS-771 | |
|---|---|
| Power source |
36 V DC under 30 mA supplied from central unit |
| Controls |
Speech button, priority button, chime button |
| Outputs |
Internal speaker: 130 Ω, 200 mW |
| Dimensions |
114.5 x 78.4 x 152.9 mm (W x H x D) |
| Finish |
ABS resin, black, grey metallic |
| Weight |
0.78 kg |
