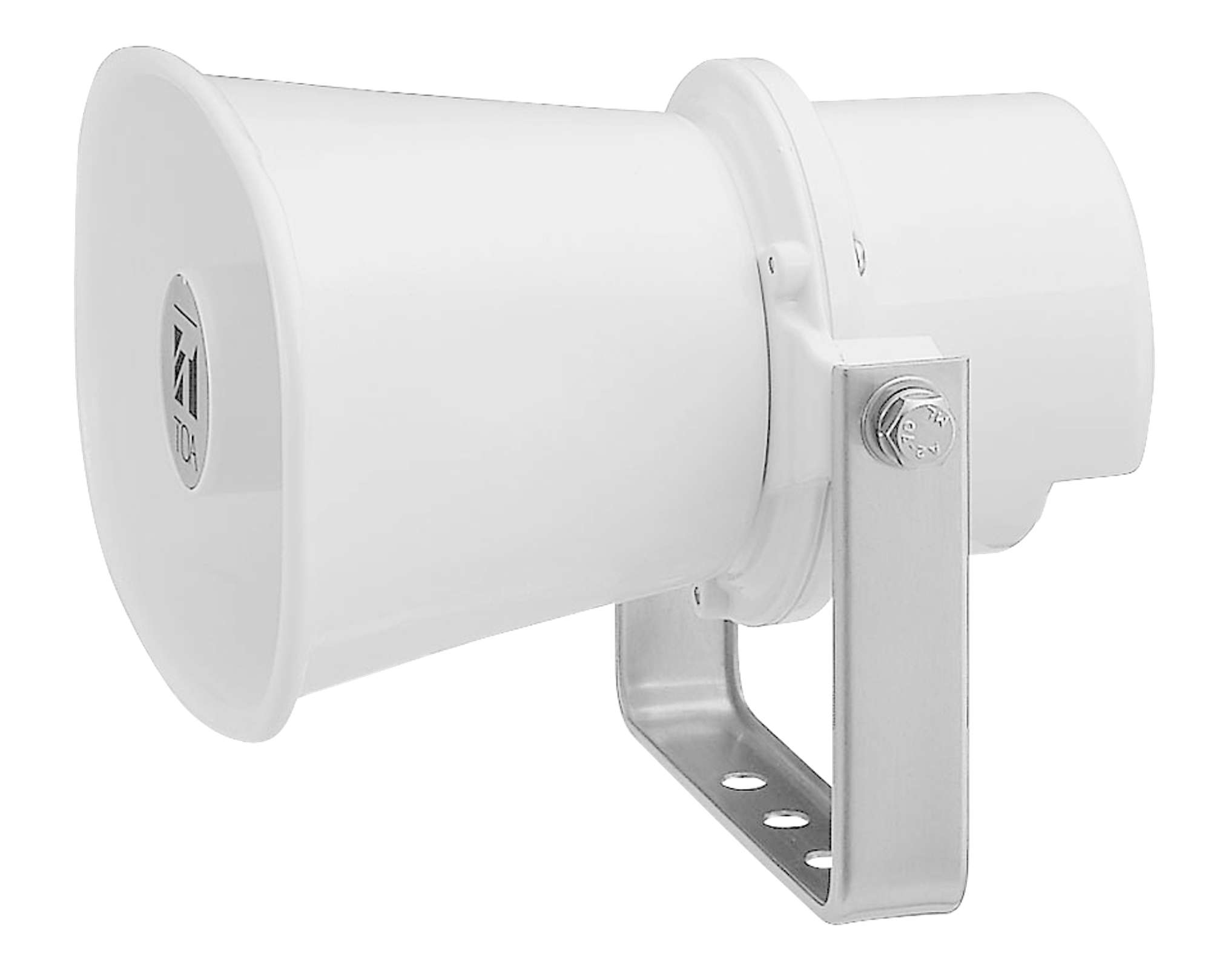

SC-610
Horn Speakers
The SC-610 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
- Very rugged speaker with durable construction ensures long term reliable operation
- High quality sound
- Very high SPL
- Easy impedance selection through switch
- Low impedance 8 Ω
- Shock resistant oval horn
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| SC-610 | SC-615 | SC-630 | |
|---|---|---|---|
| Frequency response |
315 Hz - 12.5 kHz |
280 Hz - 12.5 kHz |
250 Hz - 10 kHz |
| Sensitivity (1 W, 1 m) |
110 dB |
112 dB |
113 dB |
| Rated input (100 V) |
10 W |
15 W |
30 W |
| Rated impedance (low impedance) |
8 Ω |
8 Ω |
|
| Dimensions |
172 x 161 x 188 mm (W x H x D) |
222 x 179 x 234 mm (W x H x D) |
285 x 227 x 277 mm (W x H x D) |
| Finish |
Aluminium, off-white (RAL 9010 or equivalent) |
Aluminium, off-white (RAL 9010 or equivalent) |
Aluminium, off-white (RAL 9010 or equivalent) |
| Operating temperature |
-20 °C to +55 °C (must be free from dew condensation) |
-20 °C to +55 °C (must be free from dew condensation) |
-20 °C to +55 °C (must be free from dew condensation) |
| Weight |
1 kg |
1.1 kg |
1.7 kg |
