DISCONTINUED

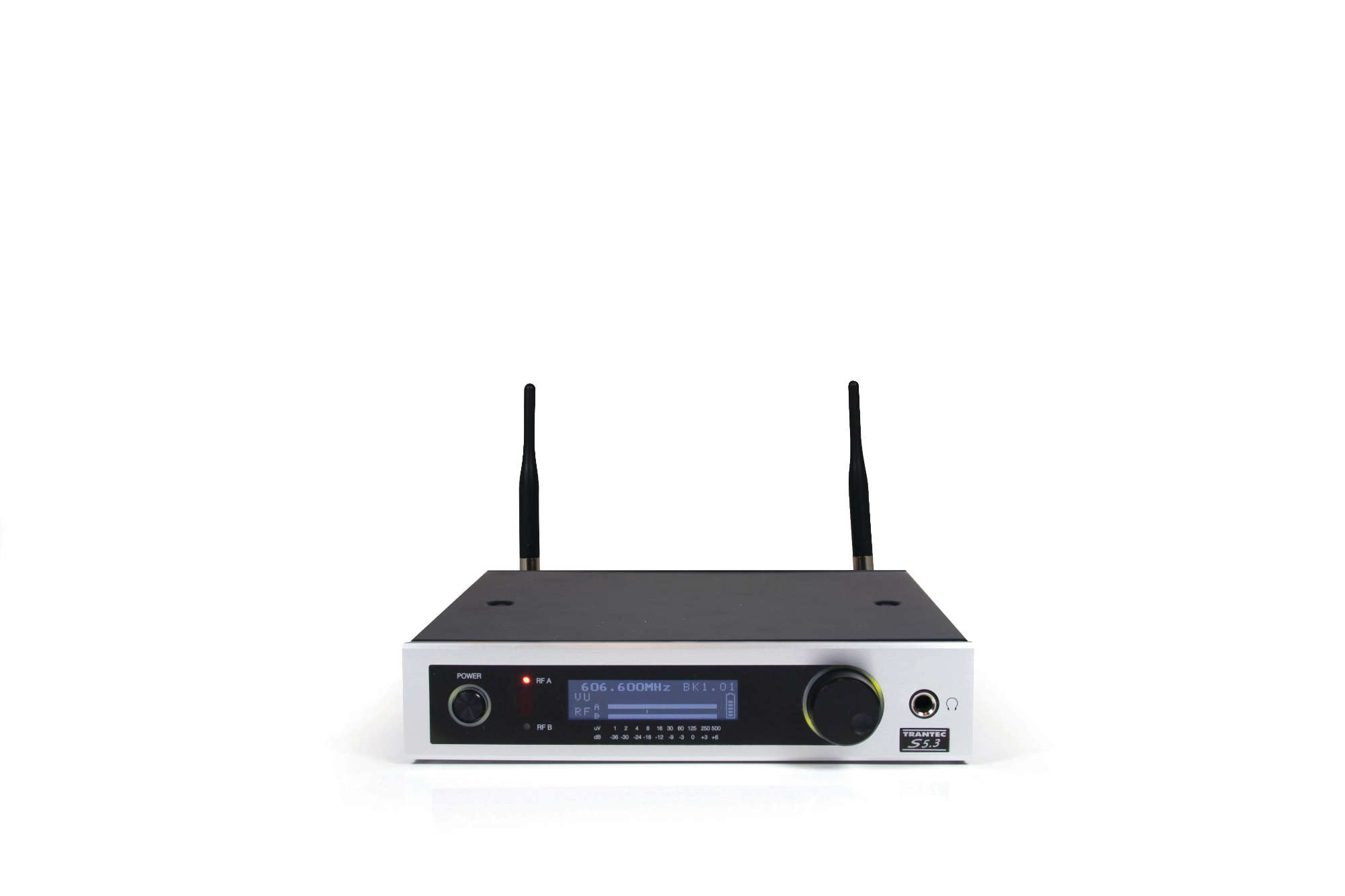

S5.3-RX-C7
True Diversity Receiver
The S5.3-RX is a true diversity tuner. This features user-friendly operability, and employ an easy-to-read LCD display. Also, it is possible to perform the system settings through infrared communications, and monitor the system status by use of the supplied monitoring software.
- True diversity operation
- 640 selectable frequencies
- Software monitoring
- Automatic frequency scanning
- Triple-squelch
- LCD screen
- Infrared synchronization
- Full metal housings and many more
- Other features: Headphone output, LCD, adjustable triple-squelch
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| S5.3-RX-C7 | |
|---|---|
| Frequency range |
*Please contact your national authority to obtain information on authorized frequencies for this wireless systems in your region. |
| Selectable frequencies |
640 |
| Diversity principle |
True diversity (dual receiver) |
| Antenna inputs |
2 x BNC (50 Ω) |
| Frequency response |
60 Hz - 20 kHz |
| Audio output |
XLR balanced (mic/line selectable), ¼“ jack unbalanced |
| Finish |
Metal |
| Dimensions |
210 x 46 x 210 mm (W x H x D) |
| Weight |
1.3 kg |
| Accessory (included) |
PC Monitoring Software x 1 |
