S4.10-HDX C8

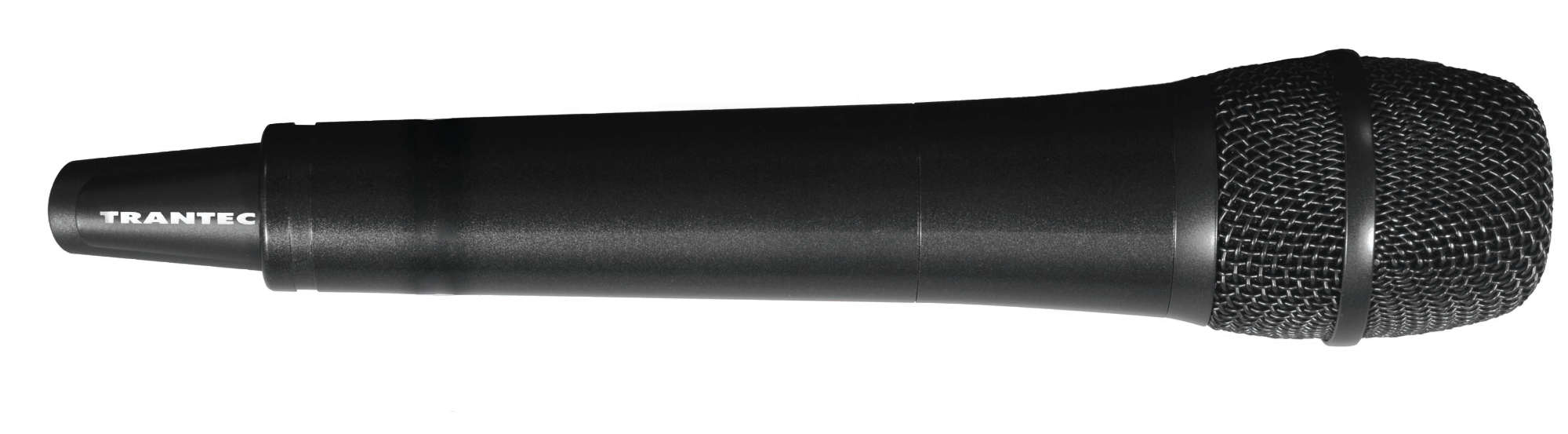

S4.10 Series Handheld Transmitter

The S4.10 Series 10 Channel Wireless System

  • Dynamic microphone with cardioid pattern
  • Single AA transmitter battery life of approx. 10 hours




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
S4.10-HDX C8
Frequency range

822 -832 MHz

Selectable frequencies

16

Microphone type

Dynamic

Directivity

Cardioid

Operating temperature

-10°C ... +55°C

Finish

black

Dimensions

50 x 250 mm (Ø x D)

Weight

245 g (with battery)

Power source

Battery 1 AA size alkaline battery, 1.5 V

Battery life

10 h

Simultaneous channels

16

AF response

80 Hz - 15 kHz

RF output power

10 mW

Max. input level

140 dBSPL
