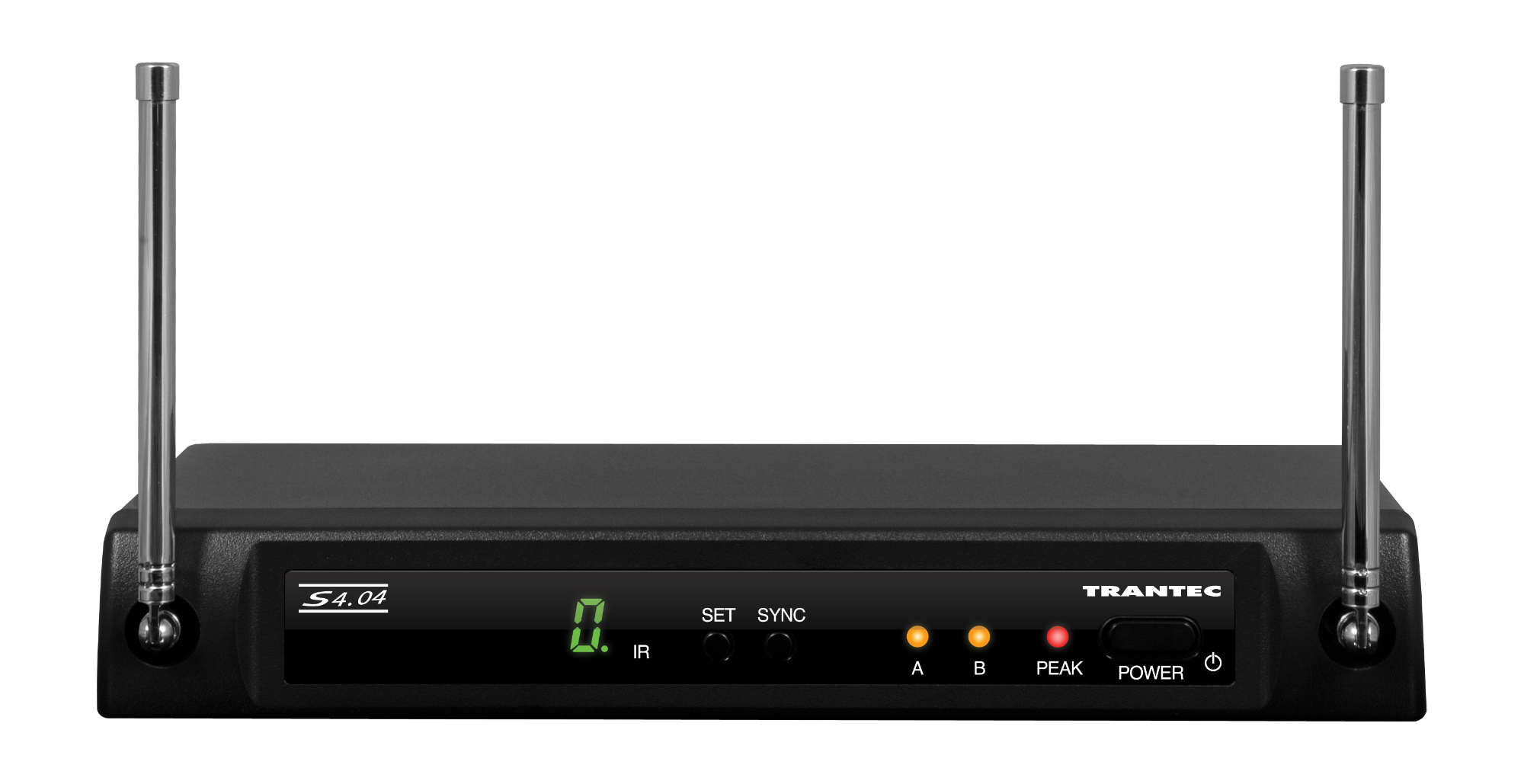

S4.04-RX D5

S4.04 Series Receiver

The S4.04 Series 4 Channel Wireless System

  • 4 switchable license free frequencies on Channel 70 (UK)
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
S4.04-RX D5
Frequency range

863 - 865 MHz

Selectable frequencies

4

Antenna inputs

No (fixed rod antenna)

Antenna outputs

no

Finish

black

Dimensions

215 x 39 x 102 mm (W x H x D)

Weight

0.48 kg
