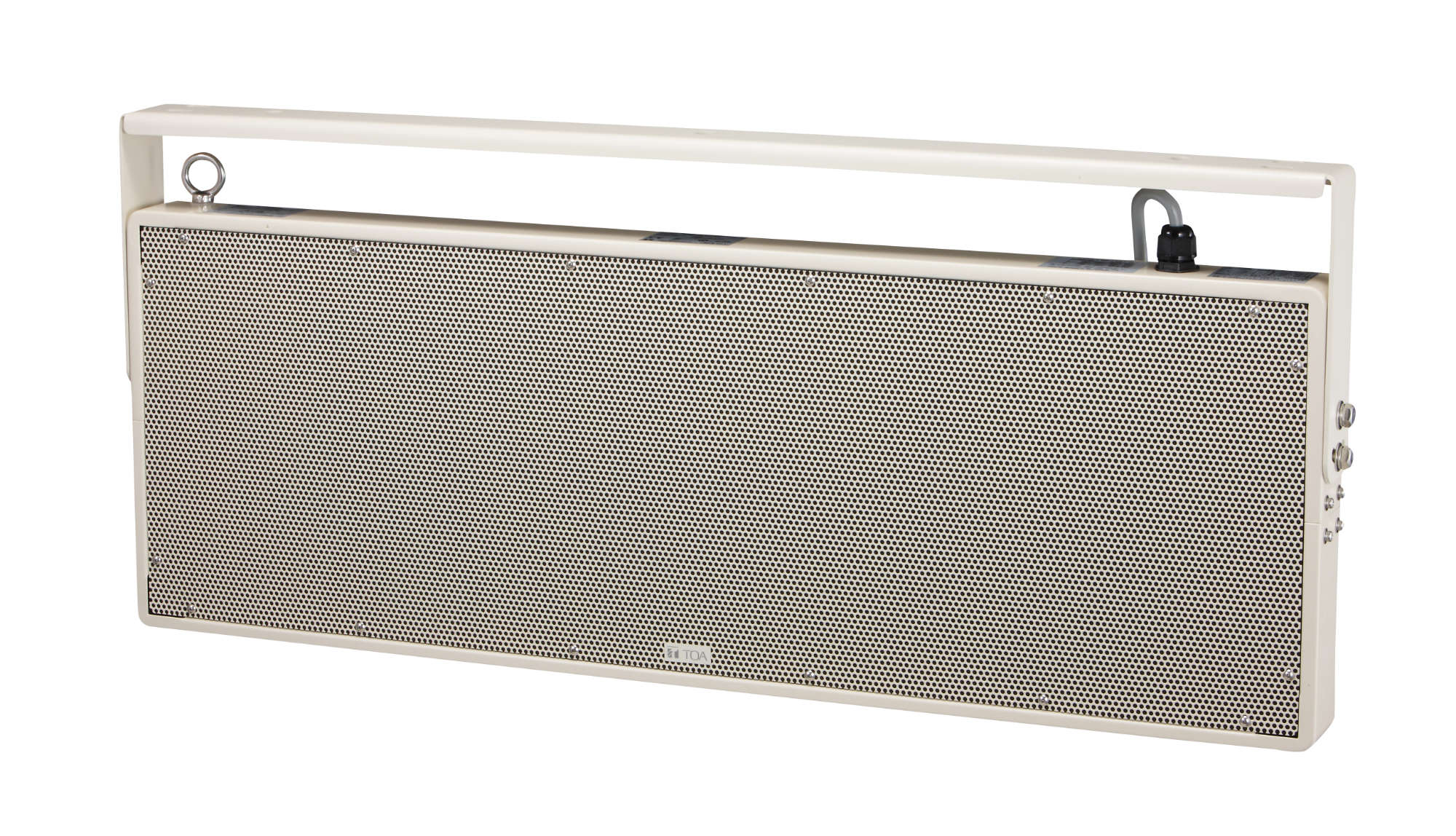

PW-1430DW

Plane Wave Speakers

The Plane Wave Speaker features a flat speaker system equipped with plane wave units, realizing a narrow directivity pattern by radiating plane wave sound. Since the Plane Wave Speaker can deliver sound output toward a limited target area, it is suited for use in locations such as station platforms and escalator areas that require information announcements to be broadcast, and in such spaces as museums and art galleries where the reverberation time is long. A double-sided radiation type radiates sound both backward and forward.

  • Double-sided radiation
  • 4 speaker units
  • Narrow directivity
  • Splash-proof construction
  • Rust resistance
  • Beam-tilting function
  • Built-in high-pass filter




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
PW-1430DW PW-1430DB PW-1430SB PW-1430SW
Frequency response

300 Hz - 17.5 kHz

300 Hz - 17.5 kHz

450 Hz - 17.5 kHz

450 Hz - 17.5 kHz

Sensitivity (1 W, 1 m)

86 dB

86 dB

87 dB

87 dB

Tappings

100V line: 330 Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)



100V line: 330 Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)



100V line: 330 Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)



100V line: 330 Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)



Speaker component

Plane wave unit (152 × 214 mm (5.98" × 8.43") × 4

Plane wave unit (152 × 214 mm (5.98" × 8.43") × 4

Plane wave unit (152 × 214 mm (5.98" × 8.43") × 4

Plane wave unit (152 × 214 mm (5.98" × 8.43") × 4

Operating temperature

-10°C to +50°C

-10°C to +50°C

-10°C to +50°C

-10°C to +50°C

Finish

Stainless steel, cream white (RAL 9001 or equivalent)

Stainless steel, black (RAL 9005 or equivalent)

Stainless steel, black (RAL 9005 or equivalent)

Stainless steel, cream white (RAL 9001 or equivalent)

Dimensions

831 x 355 x 60 mm (W x H x D)

831 x 355 x 60 mm (W x H x D)

831 x 355 x 60 mm (W x H x D)

831 x 355 x 60 mm (W x H x D)

Weight

11.4 kg

11.4 kg

11.9 kg

11.9 kg

Connection

ø9 mm (0.35"), 6-core cabtyre cable, 2 m (6.56 ft)

ø9 mm (0.35"), 6-core cabtyre cable, 2 m (6.56 ft)

ø9 mm (0.35"), 6-core cabtyre cable, 2 m (6.56 ft)

ø9 mm (0.35"), 6-core cabtyre cable, 2 m (6.56 ft)

Sensitivity (1 W, 1 m)

86 dB (1 – 10 kHz)

86 dB (1 – 10 kHz)

87 dB (1 – 10 kHz)

87 dB (1 – 10 kHz)

Rated input (high impedance)

30 W

30 W

30 W

30 W
