DISCONTINUED

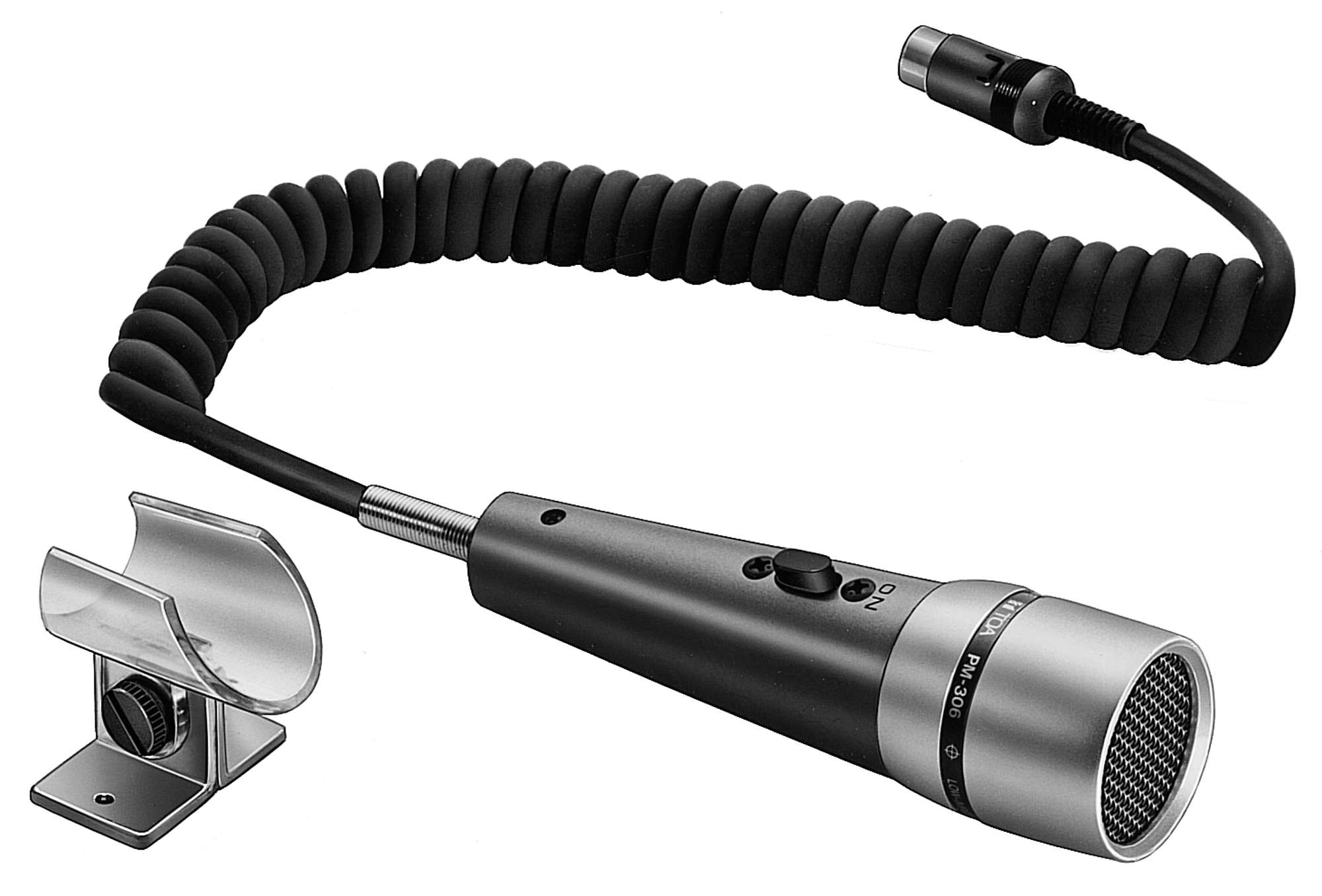

PM-306D
Paging Microphones
Paging microphone with press-to-talk switch and make output (for muting). Heavy-duty metallic body, and durable microphone cable and switch all combine to assure excellent durability against rough handling. High intelligibility thanks to ambient noise-, handling noise- and pop-free design. Two-meter coiled cable with 5-pin DIN plug for use with the TOA amplifiers.
- Heavy duty microphone
- Metallic body suppresses background and handling noise for high intelligibility
- Push-to-talk-switch
- Coiled cable with 5-pin DIN plug (unbalanced)
- 500 Ω impedance
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| PM-306D | |
|---|---|
| Frequency response |
80 Hz - 16 kHz |
| Microphone type |
Heavy-duty Microphone (dynamic) |
| Microphone sensitivity |
-50 dB (1 kHz 0 dB = 1 V/Pa) |
| Rated impedance (low impedance) |
500 Ω |
| Controls |
Push-to-talk switch |
| Directivity |
Omnidirectional Omnidirectional |
| Dimensions |
40 x 134 mm (Ø x D) |
| Finish |
grey |
| Weight |
350 g |
Application examples
Tender text
Downloads
Discontinued Products
At TOA, durability and highest quality are our top priorities. In order to drive innovation and continuously deliver state-of-the-art audio solutions, certain products naturally reach the end of their lifecycle.
For full details on affected products and recommended replacements, please visit our product discontinuation page or contact us.
