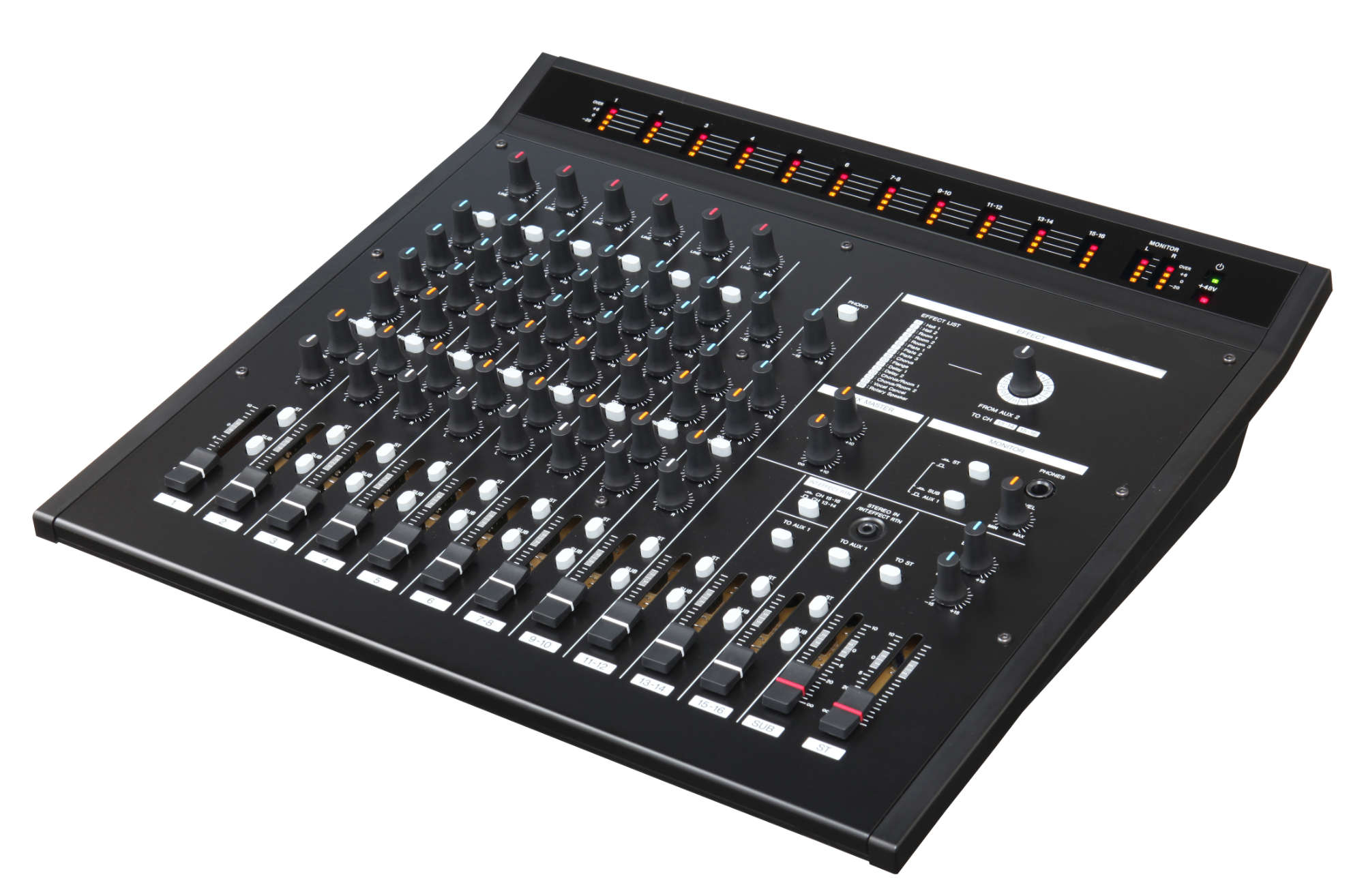

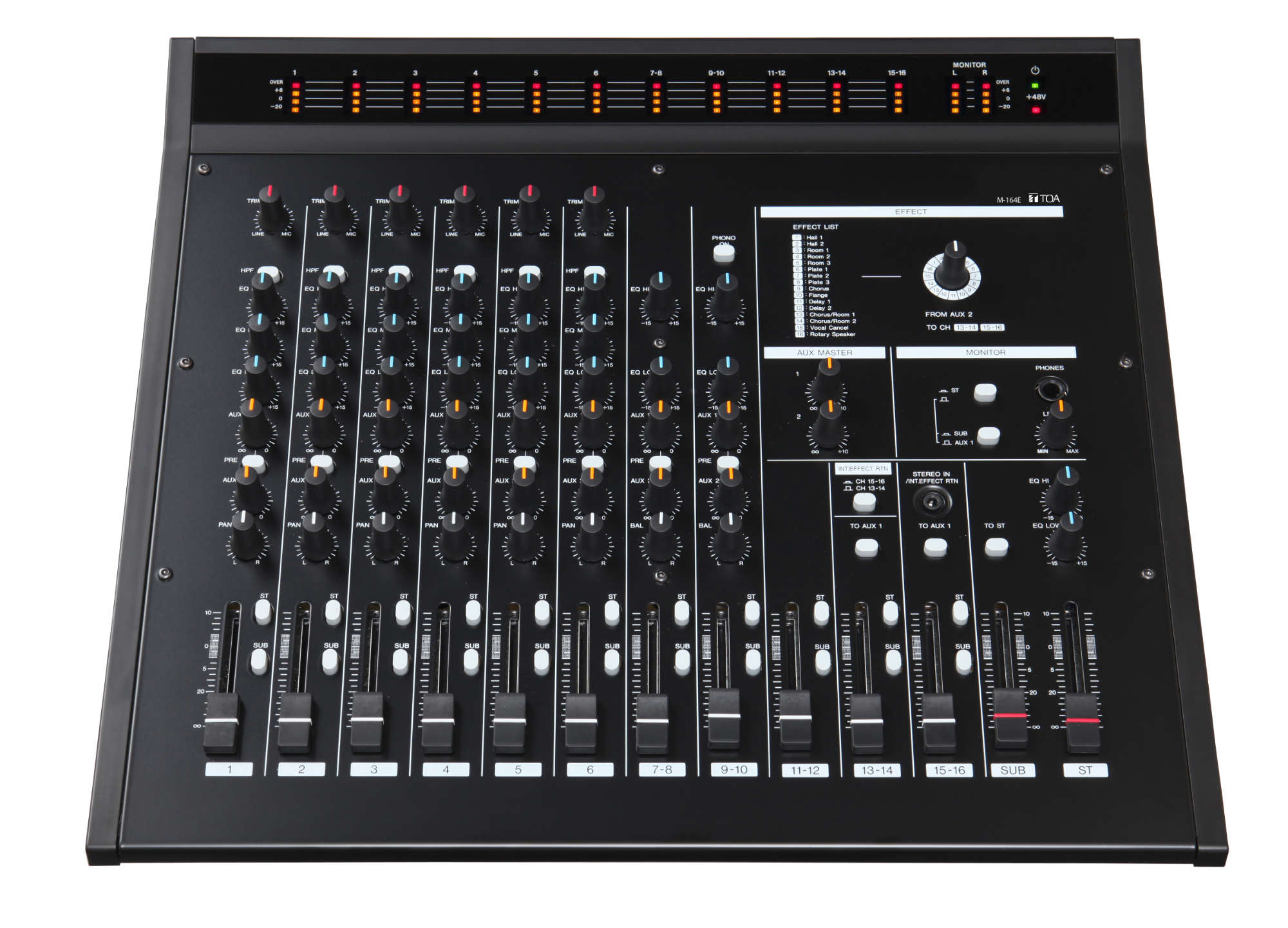

M-164E-AE

Analog mixer with effect DSP function

The M-164E-AE is an affordable mixer for installation in mosque, conference room, restaurant or small hall, the 16-channel mixer features 6 mic inputs with XLR inputs and phantom power and highpass filter for great-sounding tracks and a unique design with built-in meter bridge.

With it‘s 5 stereo line inputs the M-164E-AE offers a versatile variety of input channels. Its stereo effects processor comes with 16 programs of reverb, delay, chorus and other sound effects. In addition the mixer features 3-Band-EQ on mic channels 1-6, 2-Band EQs on line channels 7-10 and main output, a RIAA phono preamp on channels 9-10 (RCA), Sub and Main output busses, separate stereo and mono outputs for main and aux as well as two aux sends.

  • 16 channels (6 mono + 5 stereo) with a fader and a meter-bridge for level monitoring
  • Variety of input / output connectors for many types of audio instruments
  • Built-in effect functions for simple mixing with reverb, delay, chorus and other effects



  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
M-164E-AE
Power source

100 - 240 V AC, 50 / 60 Hz with AC Adapter: 12 V/ 2.5 A
Power / current consumption

25 W
Frequency response

20 Hz - 20 kHz
Crosstalk

-80 dB

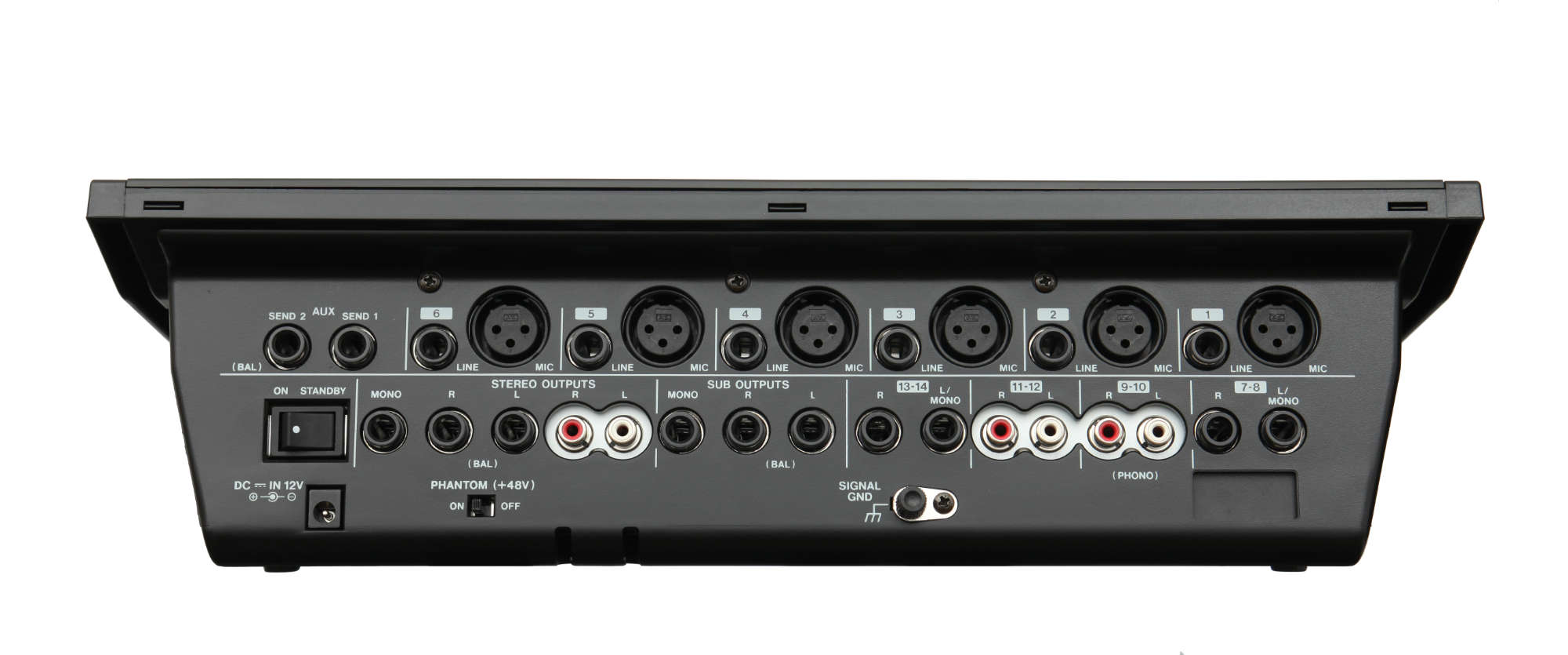

Inputs

6 x Mic/Line Inputs:

  • 6 x Mic Inputs: XLR 3 female, electronically balanced, 2.4 kΩ, Input level: nominal -58 dBu (Trim at max.) / max. + 10 dBu (Trim at min.) or 6 x Line Inputs: 3-pole, electronically balanced, 22 kΩ, Input level: nominal -38 dBu (Trim at max.) / max. + 30 dBu (Trim at min.)

    5 x Stereo Inputs:
  • Input 7 – 8 & 13 – 14: line jacks 6.3 mm (TRS), electronically balanced, 10 kΩ, Input level: nominal +4 dBu / max. + 22 dBuInput 9 – 10: RCA pin jacks, unbalanced, 47 kΩ (with Phono on), Input level: nominal -10 dBV (-54 dBV with Phono on / max. + 11 dBV
  • Input 11 – 12: RCA pin jacks, unbalanced, 10 kΩ (with Phono on), Input level: nominal -10 dBV / max. + 11 dBV
  • Input 15 – 16: 3-pole mini jack (tip: L), unbalanced, 10 kΩ, Input level: nominal -10 dBV / max. + 11 dBV
Outputs
  • Stereo Outputs (L,R) balanced; Line jacks 6.3 mm, 100 Ω, output level: nominal +4 dBu / max. + 24 dBu
  • Stereo Outputs (Mono) pseudo balanced; Line jacks 6.3 mm, 100 Ω, output level: nominal -2 dBu / max. + 20 dBu
  • Stereo Outputs (L,R) unbalanced; RCA jacks, 100 Ω, output level: nominal -10 dBV / max. + 6 dBV
  • Sub Outputs (L,R) pseudo balanced; Line jacks 6.3 mm, 150 Ω, output level: nominal +4 dBu / max. + 20 dBu
  • Sub Outputs (Mono) pseudo balanced; Line jacks 6.3 mm, 150 Ω, output level: nominal -2 dBu / max. + 20 dBu
  • Aux Send (1,2) jacks; Line jacks 6.3 mm, 150 Ω, output level: nominal +4 dBu / max. + 20 dBu
  • Phones (1,2) line jacks, max. output 45 mW + 45 mW (1 %THD, 32 Ω load)
Signal processing

3-band / 2-band EQ, HPF, Effect Return, 16 digital effects presets
Equalizer / Filter


Dimensions

390 x 112 x 344.5 mm (W x H x D)
Finish

black
Weight

3.4 kg
