IP-A1MP
Microphone Panel
Combine Intercom and PA in a Single Station

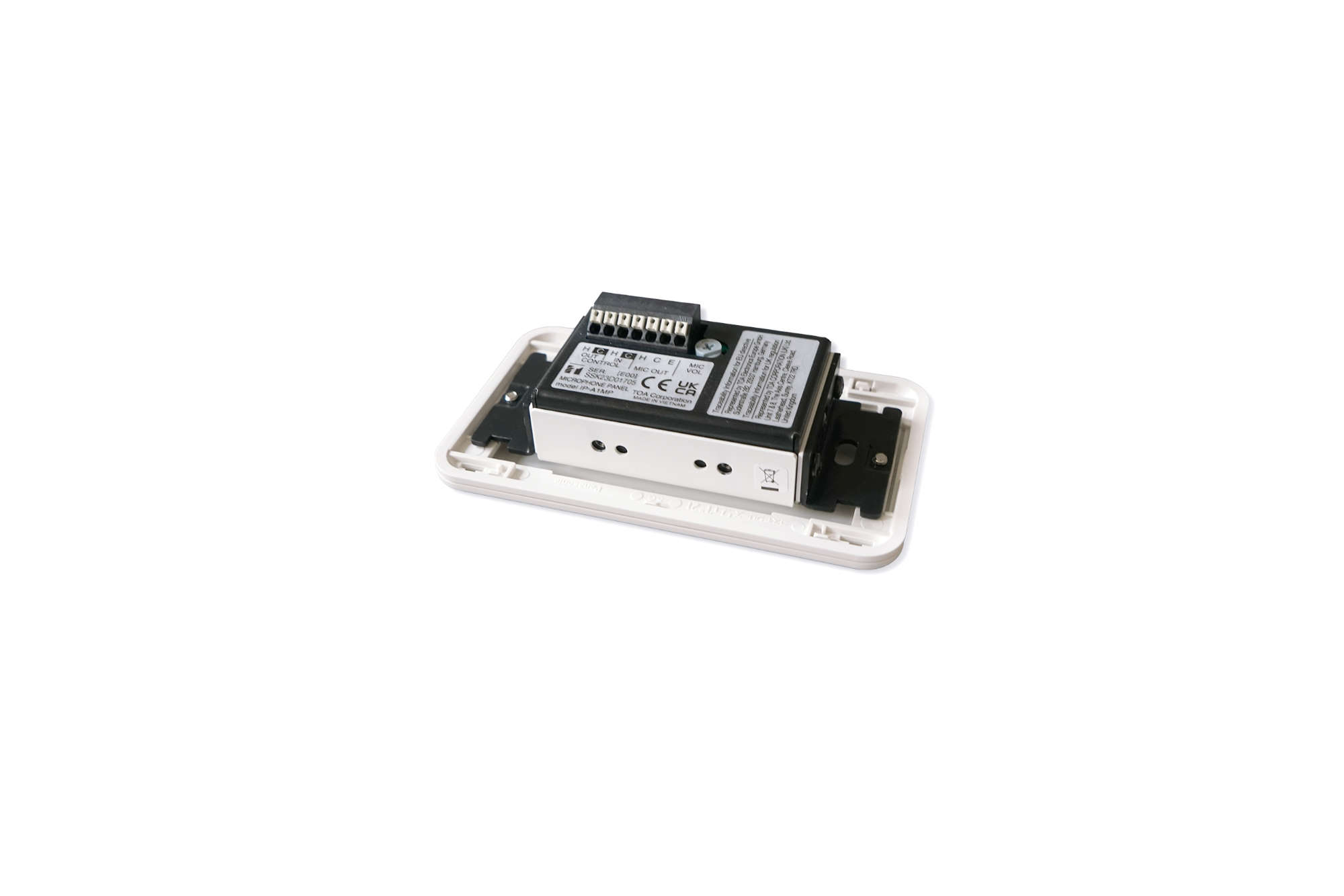

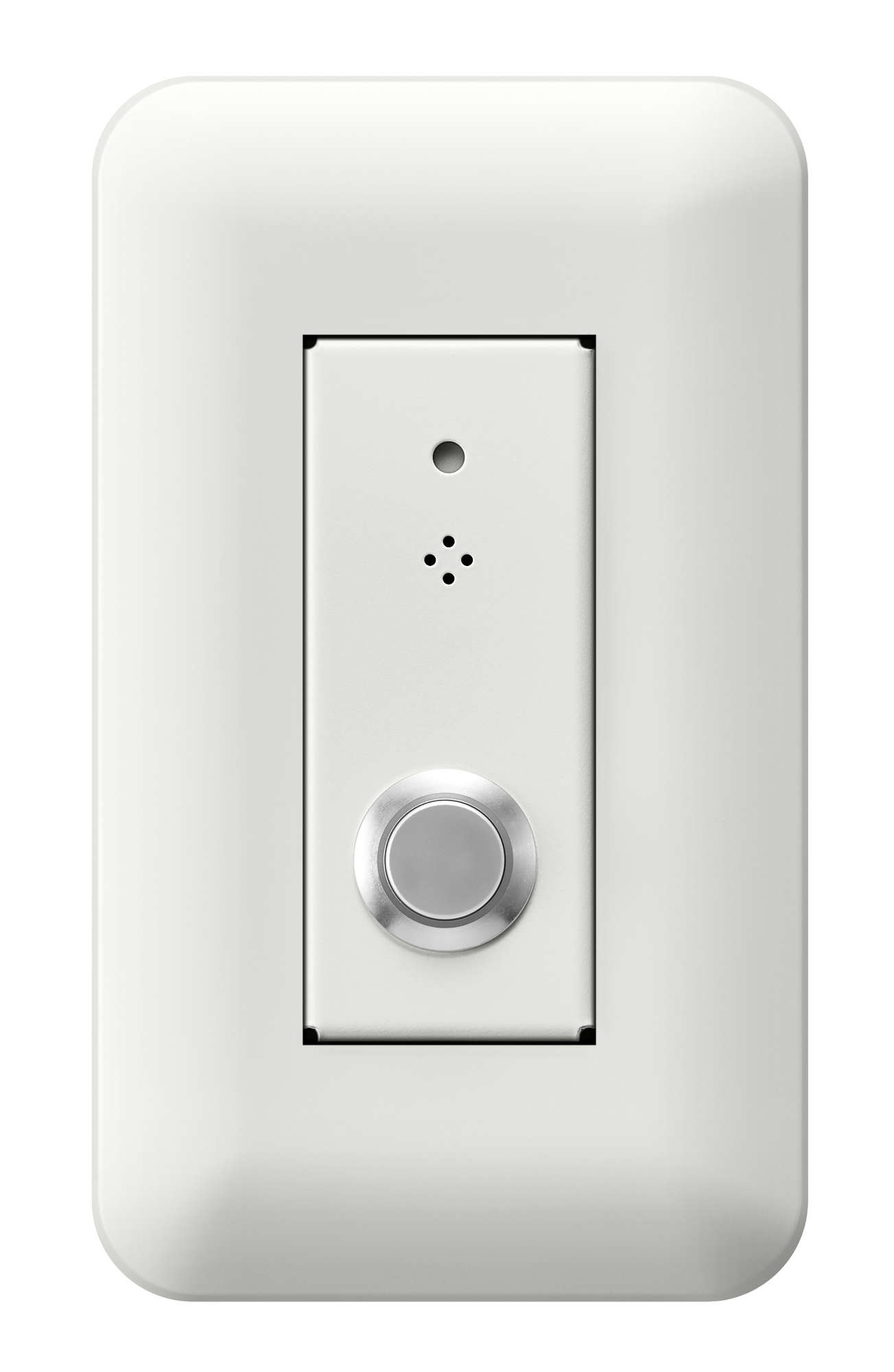

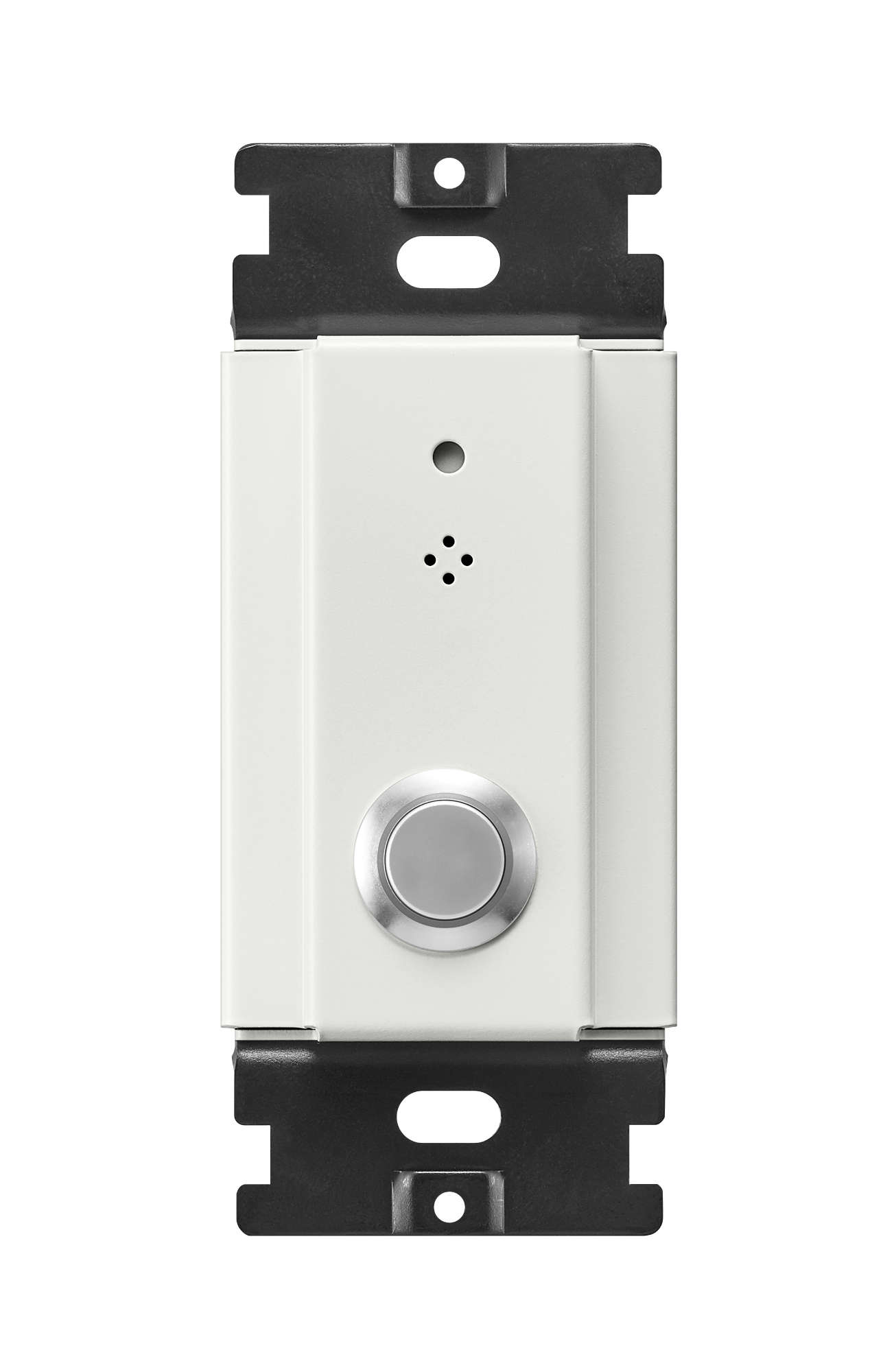

Push & Talk: The IP-A1MP microphone panel is an analogue call station including a microphone, a call button and a call indicator LED. It has been designed to be connected to either the IP-A1AF IP audio interface or the IP-A1PA12 IP power amplifier.
Adding a ceiling or wall loudspeaker to the setup creates a full SIP call station, combining intercom and public address in a single system and allowing natural conversations to SIP telephones or VMS operators.
But the IP-A1MP microphone panel is not limited to be used with other IP-A1 devices. Thanks to analogue audio and control connections, it can interact with a wide range of PA or other systems.
- Microphone incl. preamplifier
- Call button
- Indication LED
- 1 line audio output
- 1 control input and 1 control output
- Powered via phantom power
Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.
Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.
Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| IP-A1MP | |
|---|---|
| Power source |
Phantom power |
| Power / current consumption |
8 mA or less |
| Frequency response |
100 Hz - 10 kHz |
| Microphone type |
Electret condenser microphone |

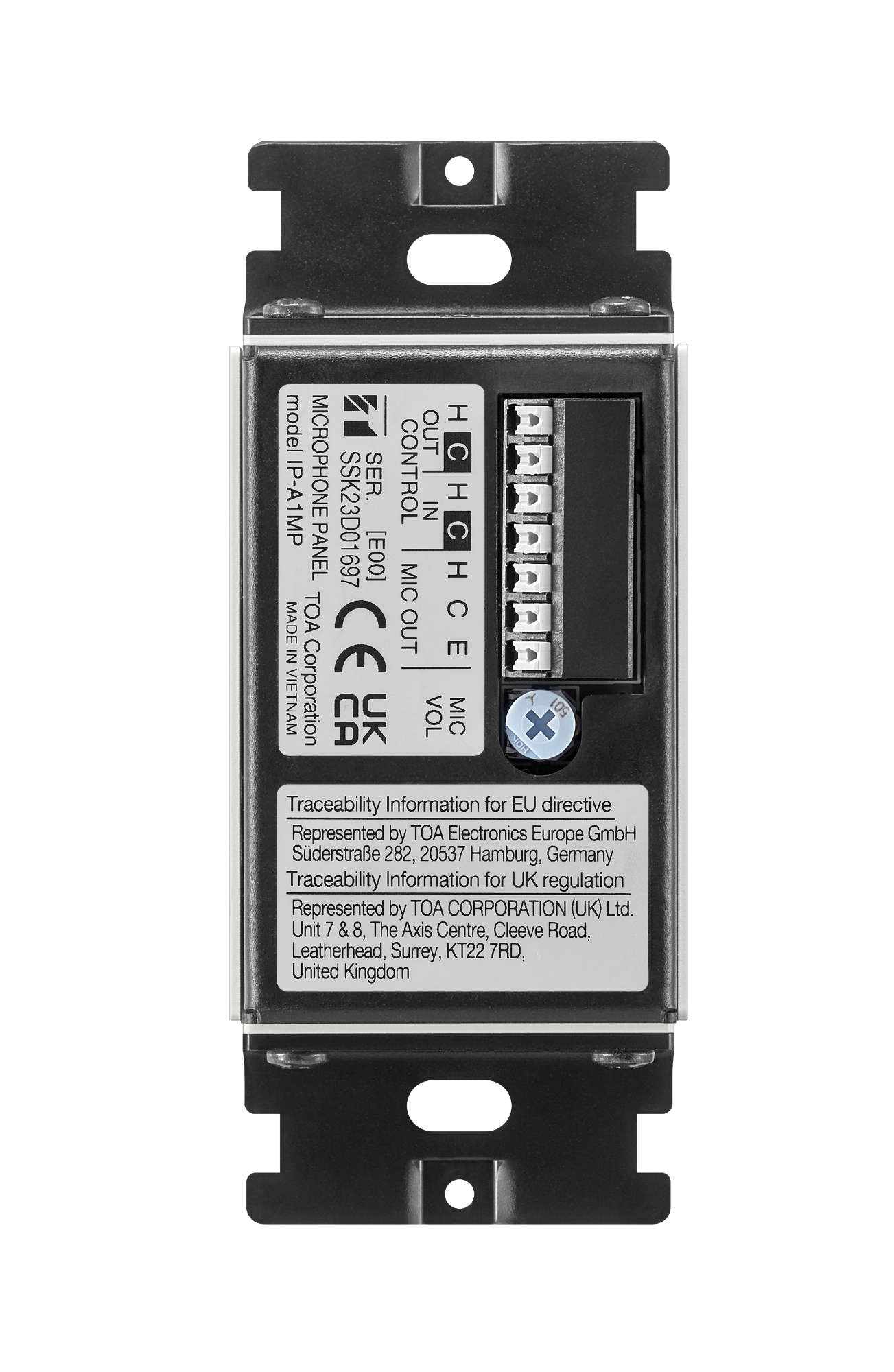

| Audio output |
1x line (balanced, push-in terminal block) |
| Control input |
1x no-voltage make contact (push-in terminal block) |
| Control output |
1x no-voltage make contact (push-in terminal block) |
| Controls |
1x push switch (momentary type) |
| Dimensions |
44.6 x 107 x 29 mm (W x H x D) |
| Finish |
Steel plate, ABS resin, white |
| Operating temperature |
−20 °C to +55 °C |
| Weight |
170 g |
