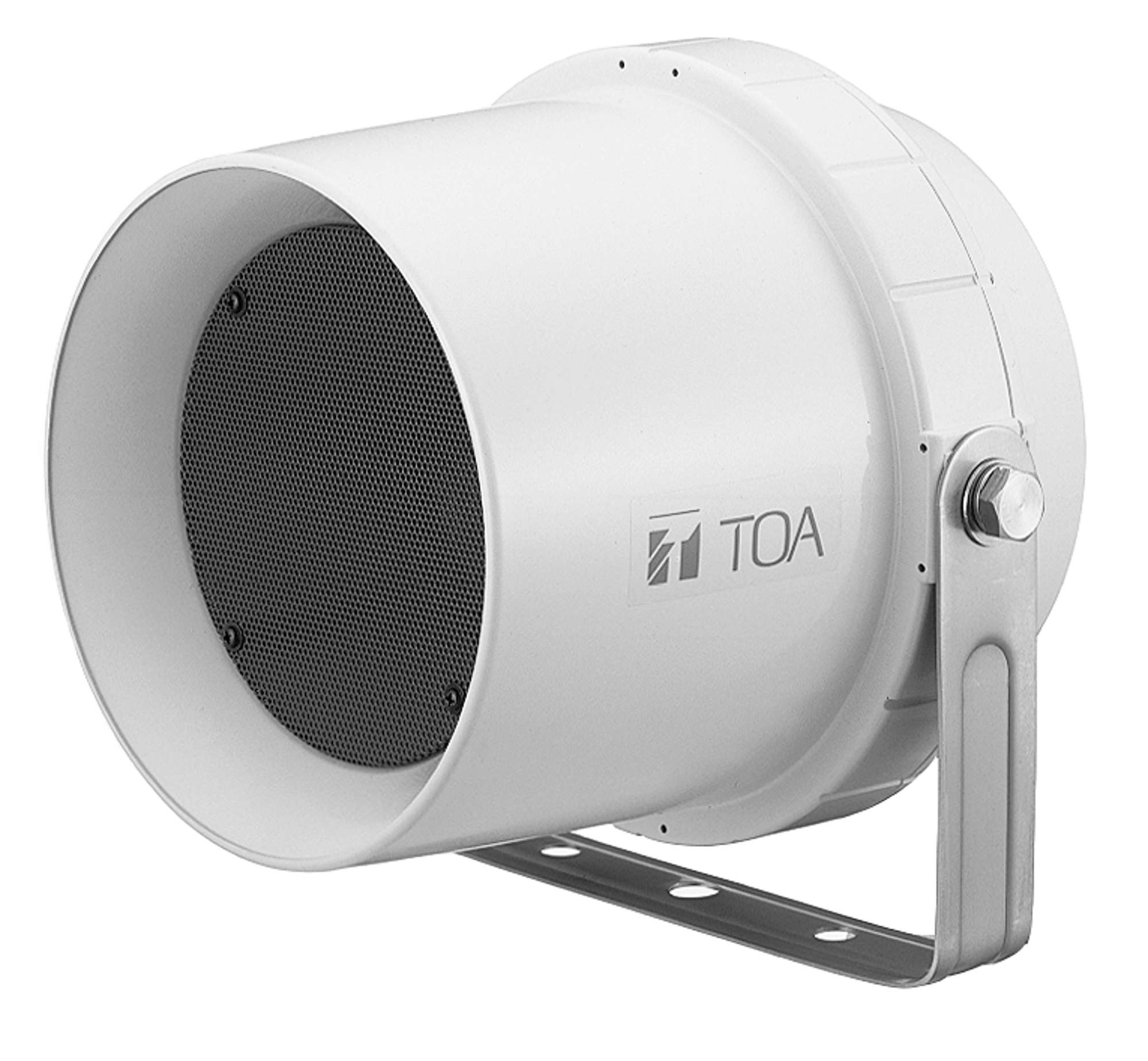

CS-64BS
Projection Speakers
The CS-64BS is the voice alarm certification product. The CS-64BS Wide range speaker features an ABS resin enclosure and stainless steel bracket for all weather durability. It is comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker, providing clear and highly directional sound reproduction.
- Round projection speaker for outdoor use
- Lightweight and rugged construction
- Exponential horn for improved directivity
- High SPL
- Complete with stainless steel bracket
- Certified according to EN 54-24, ISO 7240-24
- Compliant with BS-5839-8: 2013
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| CS-64BS | CS-154BS | |
|---|---|---|
| Frequency response |
130 Hz - 13 kHz |
150 Hz - 15 kHz |
| Sensitivity (1 W, 1 m) |
96 dB |
97 dB |
| Max. SPL (1 m) |
100 dB |
104 dB |
| Rated input (100 V) |
6 W |
15 W |
| Tappings (100 V) |
100 V : 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 830 Ω (6 W) / 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
100 V : 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) 70 V : 330 Ω (15 W) / 670 Ω (7.5 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W) |
| Speaker component |
12 cm cone-type (treated for splash proof) |
12 cm cone type (treated for splash proof) |
| Dimensions |
233 x 224 x 249 mm (W x H x D) |
366 x 230 x 310 mm (W x H x D) |
| Finish |
ABS resin, off-white |
ABS resin, off-white (RAL 9010 or equivalent) |
| Operating temperature |
–20 ºC to +55 ºC ( -4 °F to 131 °F) |
–20 ºC to +55 ºC (-4 °F to 131 °F) |
| Weight |
1.7 kg |
3 kg |
