CR-SR821 BD3

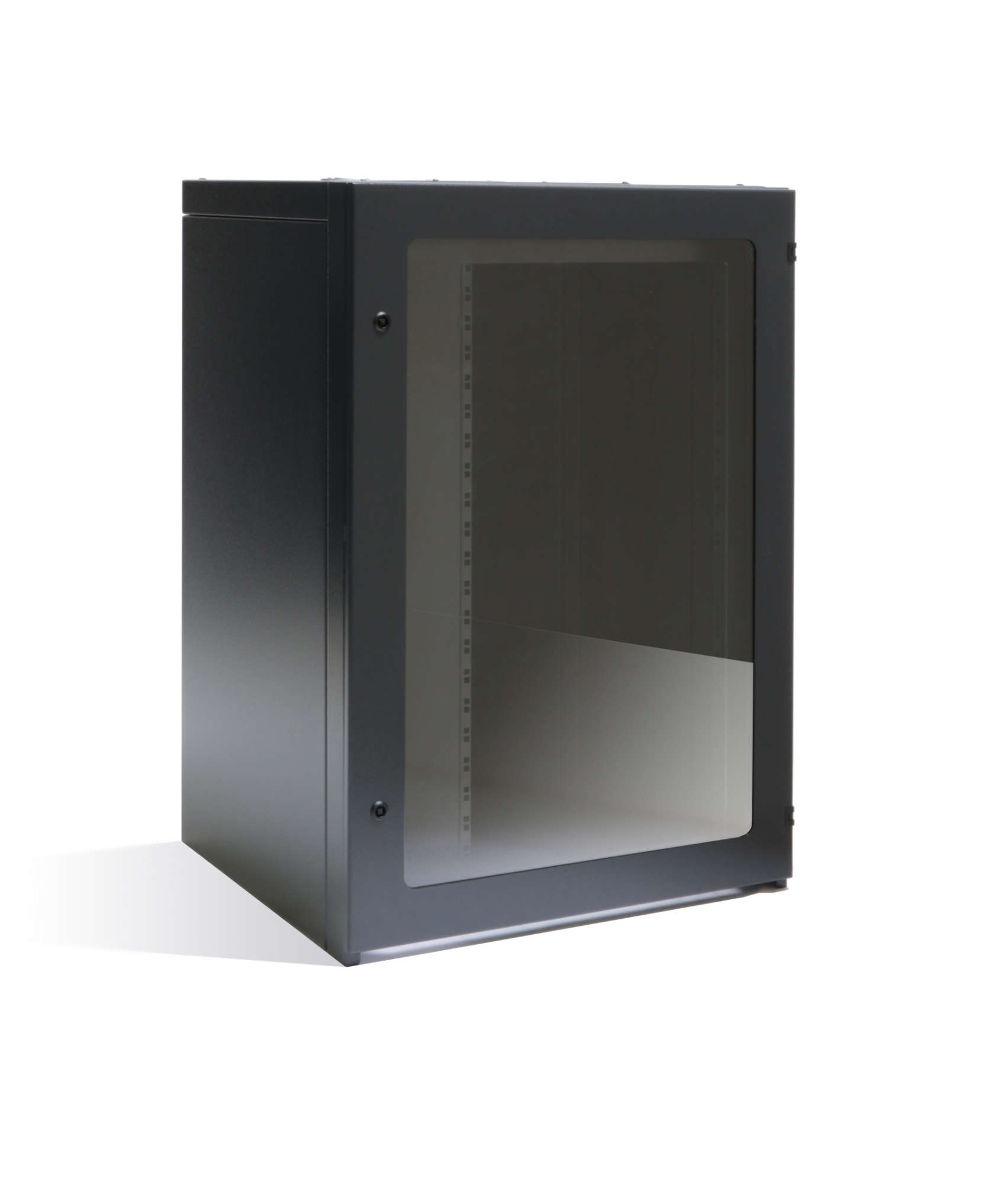

Swing frame rack, 21 units, with equipotential bonding busbar, cable feedthrough rubber plate, cable ducts and plexiglas front door
- 21 U swing frame cabinet rack with plexi glass door
- Delivery of completely assembled cabinet rack
- 2 mm steel
- Cable inlets on top and on rear near bottom
- Max. mounting depth: 500 mm
- Swingframe with wheel allows easy movement even at a high weight load
- Drill holes for fixation on floor
- With earth rail, cable ducts and rubber cable outlet
- Colour: anthracite
- Specifications
- Equipment
- Downloads
Specifications
Specifications for product:
| CR-SR821 BD3 | CR-SR821 | CR-SR821 BD1 | CR-SR821 BD2 | |
|---|---|---|---|---|
| Dust / Water protection. |
IP 30 |
IP 30 |
IP 30 |
IP 30 |
| Dimensions |
800 x 1123 x 685 mm (W x H x D) |
800 x 1123 x 600 mm (W x H x D) |
800 x 1123 x 600 mm (W x H x D) |
800 x 1123 x 600 mm (W x H x D) |
| Finish |
Steel plate, anthracite grey (RAL 7021) |
Steel plate, anthracite grey (RAL 7021) |
Steel plate, anthracite grey (RAL 7021) |
Steel plate, anthracite grey (RAL 7021) |
| Weight |
102 kg |
84.1 kg |
85 kg |
87 kg |
Equipment
Downloads
