BS-301B

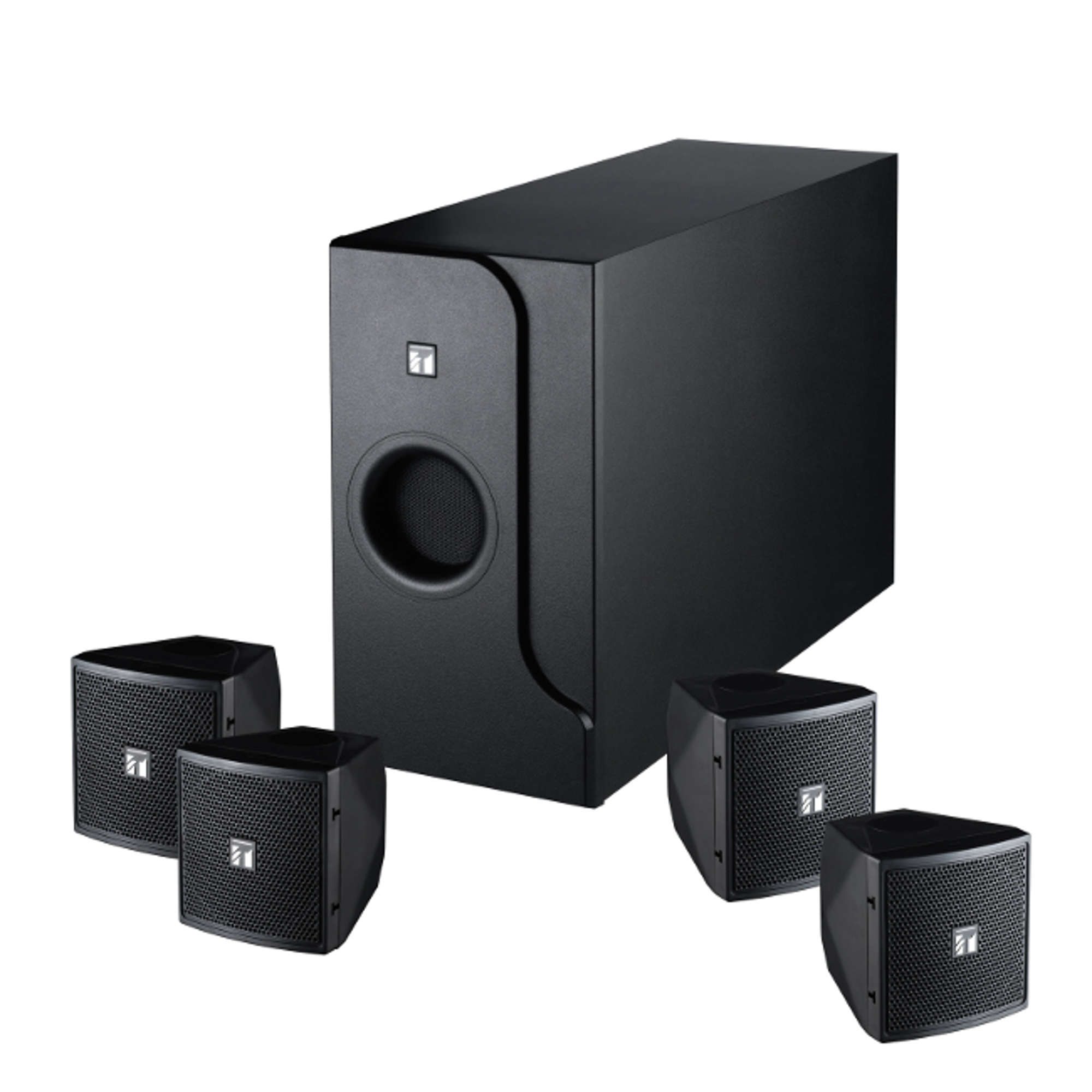

Compact satellite speaker system

BS-301 Compact satellite speaker system can produce effective acoustic sounds in commercial spaces like restaurants, cafés and retail stores. There are 4 small satellite speakers that conform to the design of the commercial space and can be installed using metal fittings attachemnts to produce suitable acoustiv sounds even in complex spaces. The subwoofer, which can be temporarily or permanent installed, are capable of reinfording the projection of ideal sounds.

  • Consists of a set of 4 satellite speakers and a subwoofer, which are individually fitted with its own mounting brackets
  • Compact and highly efficient in performance
  • The mounting brackets fitted onto the satellite speakers can be for 1 speaker or 2 speakers installation




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
BS-301B BS-301W
Frequency response

40 Hz - 20 kHz

40 Hz - 20 kHz

Sensitivity (1 W, 1 m)

81 dB

81 dB

Rated input (low impedance)

Continuous program: 160 W x 2 channels
Continuous pink noise: 80 W x 2 channels
Measured in a set configuration of a subwoofer (L or R channel) and 2 satellite speakers

Continuous program: 160 W x 2 channels
Continuous pink noise: 80 W x 2 channels
Measured in a set configuration of a subwoofer (L or R channel) and 2 satellite speakers

Rated impedance

4 Ω

4 Ω

Speaker component

Subwoofer: 16 cm cone-type x 2 channels, 210 (W) x 390 (H) x 563 (D)
Satellite Speaker: 8 cm cone-type x 2 channels, 92 (W) x 97.5 (H) x 100 (D)

Subwoofer: 16 cm cone-type x 2 channels, 210 (W) x 390 (H) x 563 (D)
Satellite Speaker: 8 cm cone-type x 2 channels, 92 (W) x 97.5 (H) x 100 (D)

Finish

HIPS resin, black (RAL 9011 or equivalent)

HIPS resin, off-white (RAL 9010 or equivalent)

Weight

0.6 kg

0.6 kg

Sensitivity (1 W, 1 m)

81 dB x 2 channels

81 dB x 2 channels

Accessory (included)

Subwoofer mounting bracket (black) x 4, Rubber foot and fixing screw for subwoofer x 4, Subwoofer mounting screw x 4, Satellite speaker mounting bracket (black) x 6, Satellite speaker mounting screw x 8, Sticker for satellite speaker (black) x 8

Subwoofer mounting bracket (white) x 4, Rubber foot and fixing screw for subwoofer x 4, Subwoofer mounting screw x 4, Satellite speaker mounting bracket (white) x 6, Satellite speaker mounting screw x 8, Sticker for satellite speaker (white) x 8
