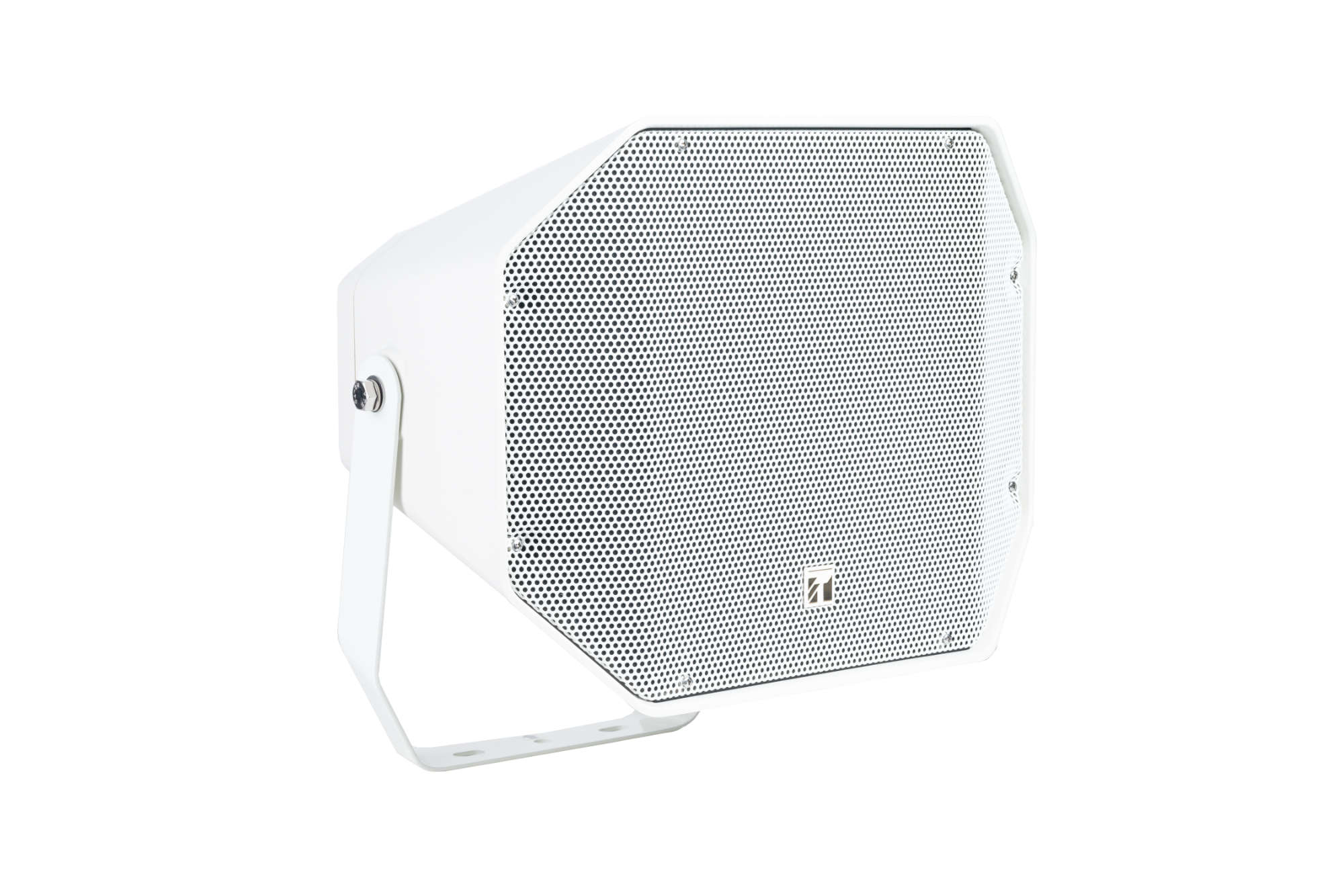

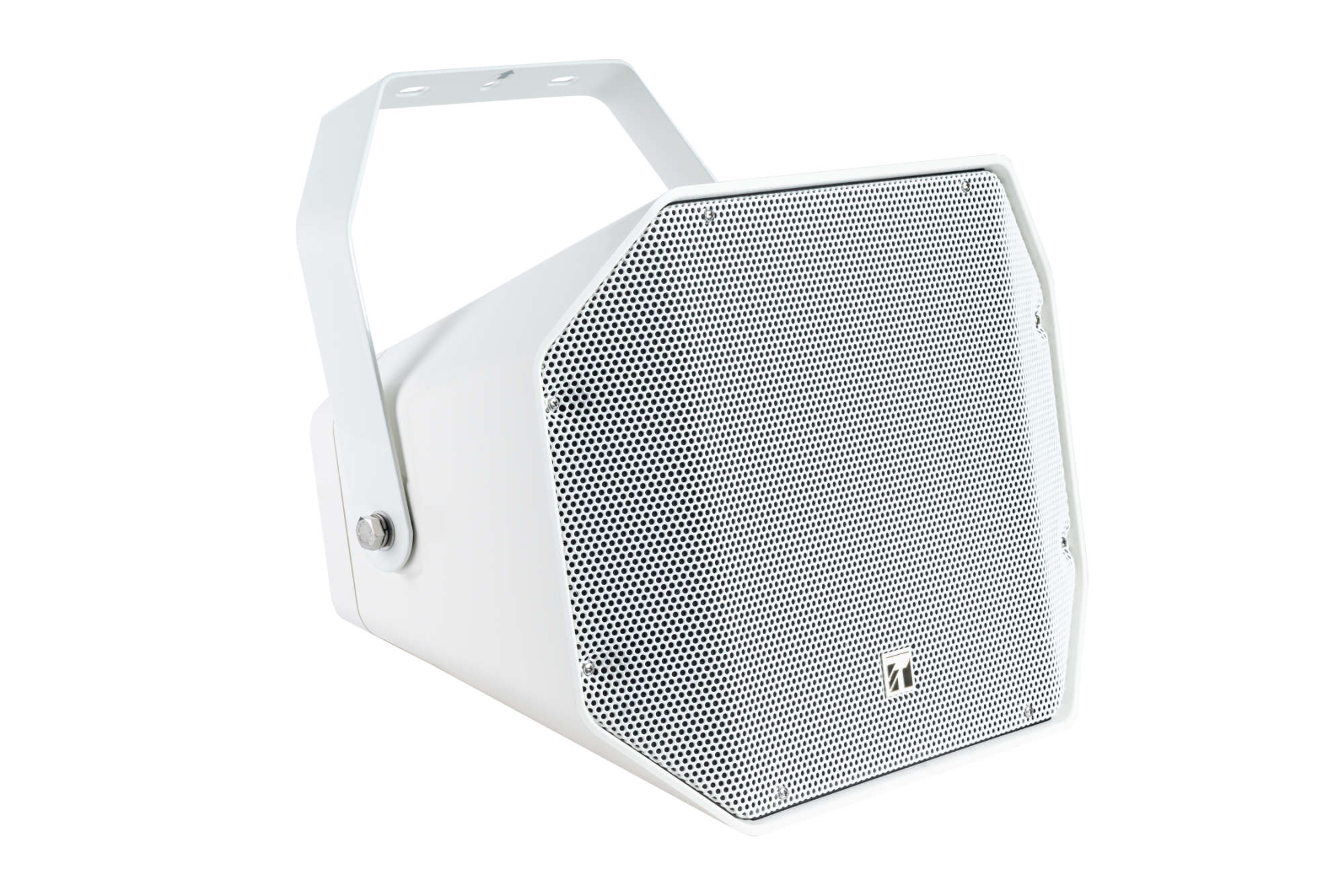

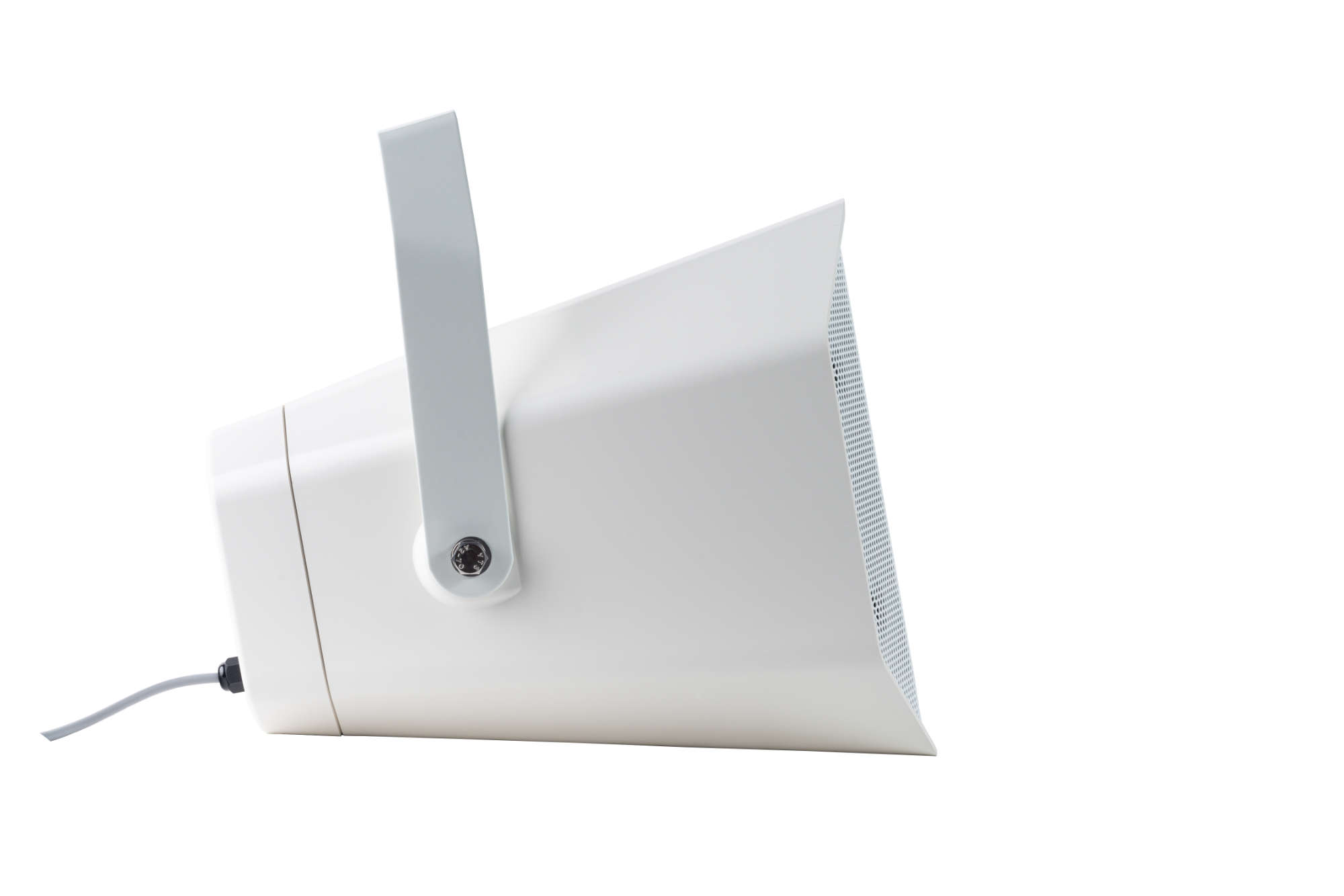

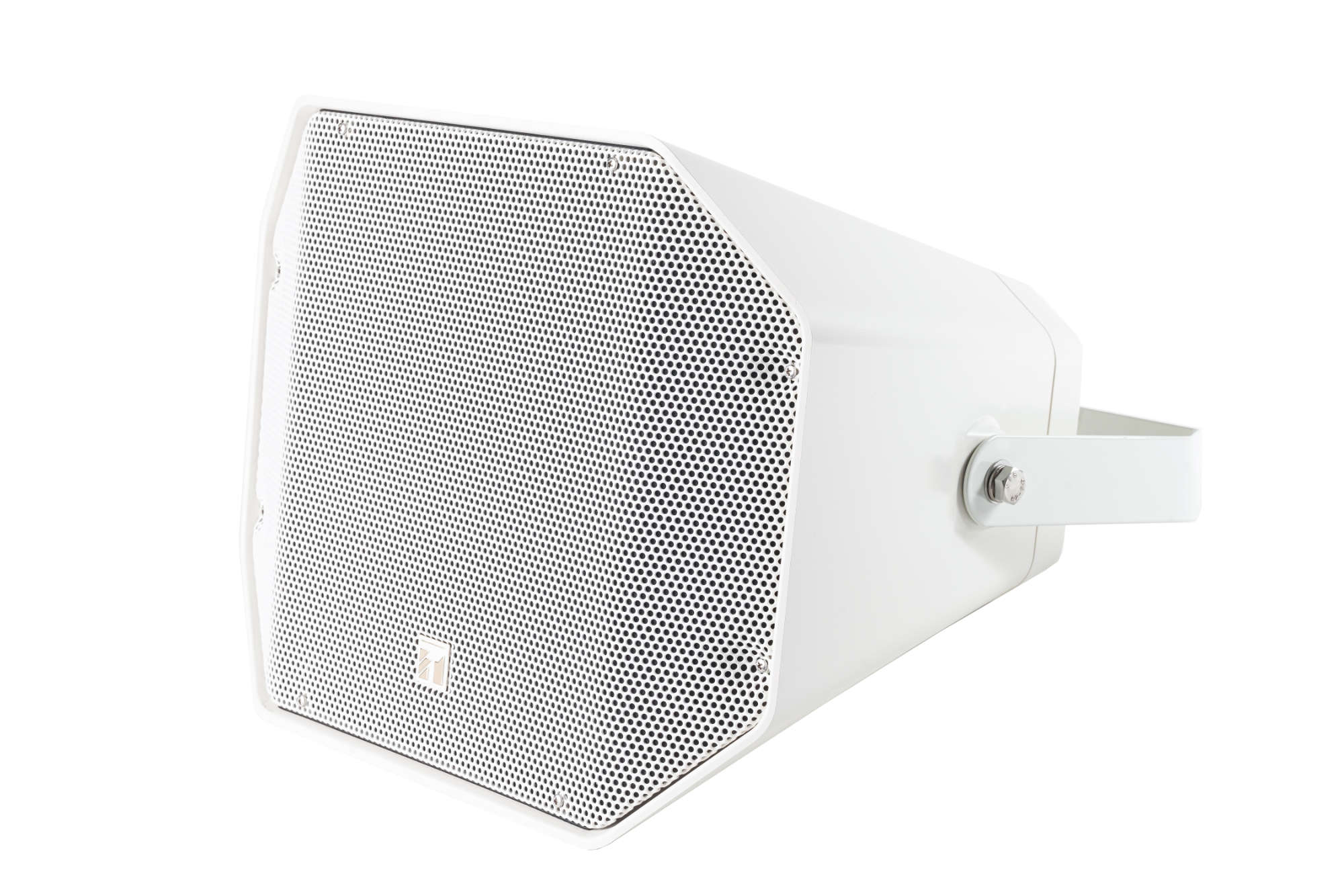

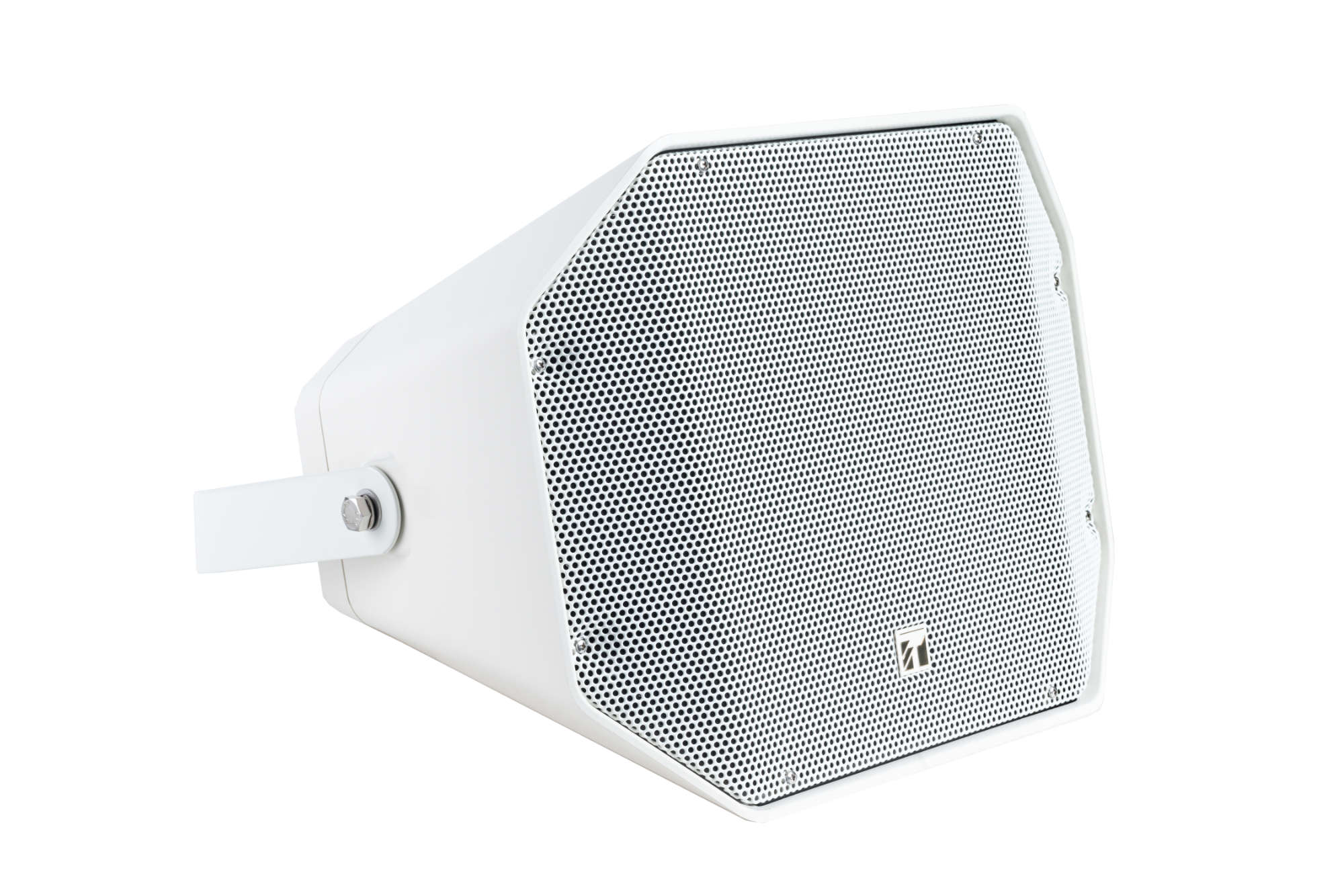

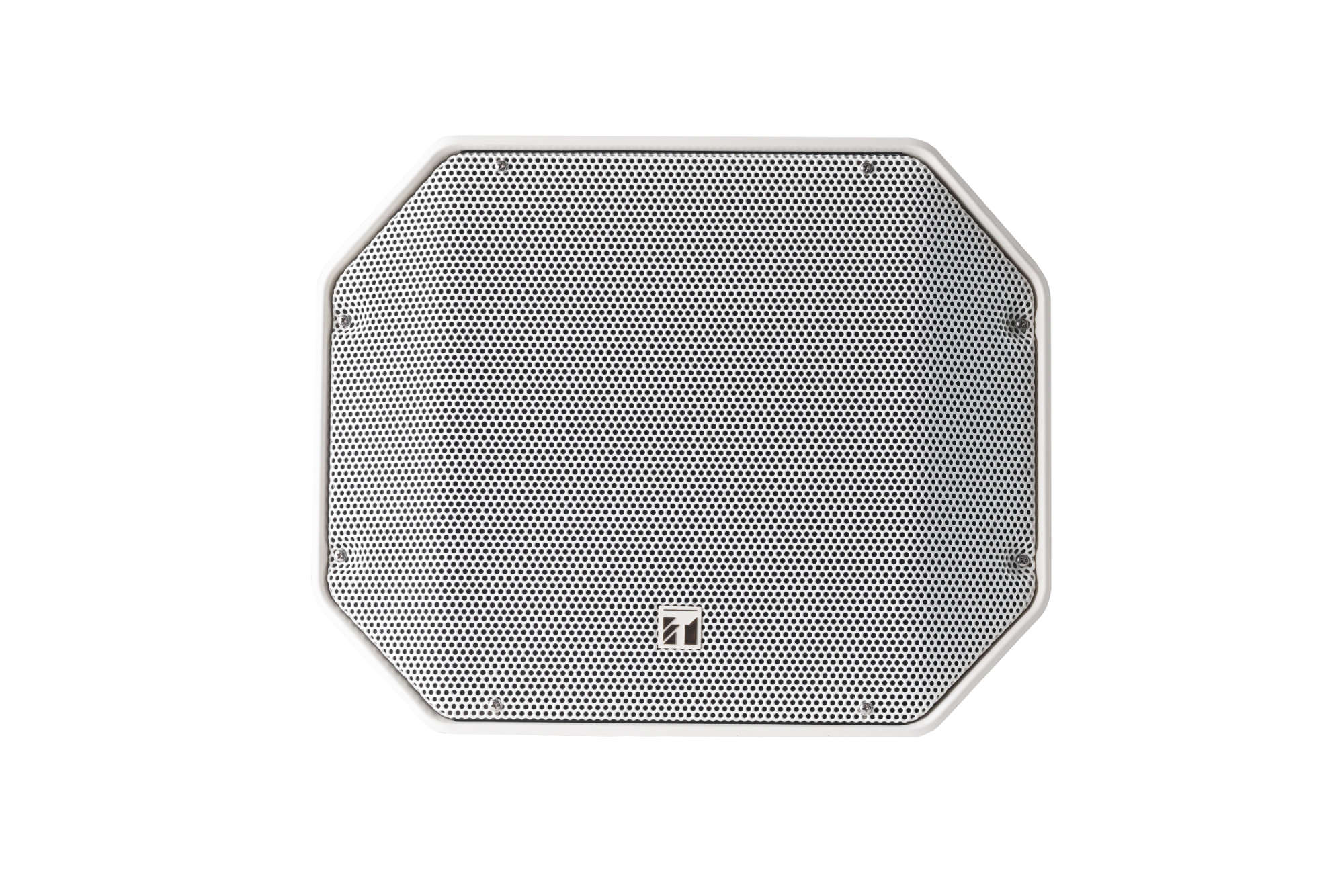

CS-761BS-W

2-Way Weatherproof Music Horn Speaker

The CS-761W is a compact 2-way weatherproof speaker system designed for high efficiency, high power input handling capacity, and is a high intelligible speaker suited for public address announcement and BGM application in outdoor environments. The external speaker component is finished to ensure the unit’s weatherproof ability, and special paint coat prevents color degradation, ensuring its long-lasting exterior condition. This model is designed with a rotary switch that facilitates hassle-free impedance change.

• Excellent speech intelligibility and backgroundmusic Clarity

• EN 54-24 certified

• High sound pressure: 117 dB

• Greatest all-rounder for semi-outdoor and outdoor applications : High weather durability, water protected and dust-tight (IP66 certified).

• Rotary switch facilitates hassle-free impedance change

• Special paint coat prevents color degradation, ensuring long-lasting exterior condition

• Flexibility of mounting: on a platform, in the ceiling, on the wall or on a pole

• Available in Black and White colour




Discover our new Music Horn Speaker in 3-D view – and project it via AR into any room and get 3-D all-round view in real time

How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.

Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.

Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.

Project into my own space:

Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.


  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
CS-761BS-W CS-761BS-B
Frequency response

100 Hz - 20 kHz

100 Hz - 20 kHz

Sensitivity (1 W, 1 m)

100 dB

100 dB

Max. SPL (1 m)

117 dB

117 dB

Operating temperature

-10 °C to +50 °C (14 °F to 122 °F)

-10 °C to +50 °C (14 °F to 122 °F)

Finish

ABS resin, Steel plate, Stainless steel, white

ABS resin, Steel plate, Stainless steel, black

Dimensions

388 x 310 x 367 mm (W x H x D)

388 x 310 x 367 mm (W x H x D)

Weight

7.4 kg

7.4 kg

Sensitivity (1 W, 1 m)

100 dB

100 dB

Rated input (high impedance)

60 W

60 W

Crossover frequency

2,500 Hz

2,500 Hz

Dust / Water protection.

IP 66

IP 66
